Connessioni Icom



ICOM


ICOM

IC7400-IC746-IC746PRO-IC756PRO-IC7700-IC7800 (vedere HM-36)



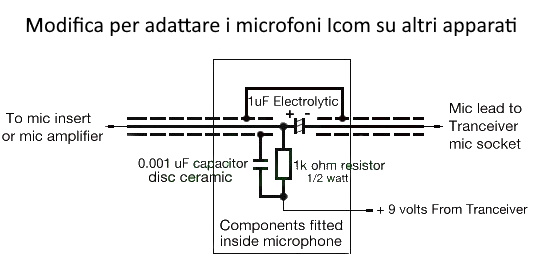

  1. MIC + DC VOLT solo per microfoni ICOM
  2. +8 VOLT 10 mA per evitare di danneggiare il regolatore non cortocircuitare a massa
  3. UP/DOWN
  4. SQUELCH
  5. PTT
  6. GROUND
  7. MIC SCREEN/EARTH
  8. AUDIO OUT







ICOM

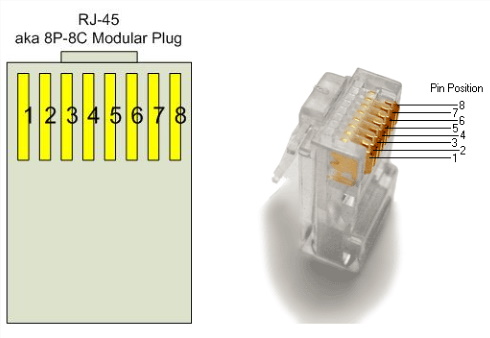

IC703-IC706MK1-IC706MK2-IC706MK3-IC2000-IC2000H (8 Pin Modular Plug)



  1. +8 VOLT
  2. UP/DOWN
  3. AUDIO OUT
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. SQUELCH







ICOM

IC-E208-IC2100H-IC2200H-IC2725E-IC2820 (vedere HM-133, 8 Pin Modular Plug)


  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT IN (No connection IC2100H)
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN (No connection IC2100H)







ICOM IC-7000 (8 Pin Modular Plug)

IMPORTANTE vedere microfono HM-151


  1. +8 VOLT OUTPUT ( 10 ma max )
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM IC-2800 (8 Pin Modular Plug ) SEE HM-98 MICROPHONE BELOW



  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM IC-2800 (8 Pin Modular Plug ) vedere microfono HM-98



  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM (Civili) (8 Pin Modular Plug) vedere microfoni SM-25, SM-100/T


F320-F420-F1020-F2020-F121-F221-F521-F620-F621/TR-F1721D-F182D-F272D
F282D-FR3000-FR4000-FR5000-FR5100-FR6100



  1. +8 VOLT
  2. UP/DOWN
  3. AF OUTPUT
  4. PTT
  5. MIC GROUND
  6. MIC AUDIO
  7. GROUND/EARTH
  8. SQUELCH (alcuni modelli)







ICOM (Civili) (8 Pin Modular Plug) vedere SM-26


IC-F300-IC-F510-IC-F1000-IC-F1600






ICOM (Portatili)

ICE90- IC91A/E- ICE7- ICT2A/E/H-ICT3H ICT7A/E/H- ICT21A/E -ICT22 -ICT41E- ICT81A/E- ICV8- ICV21AT- ICV82
ICV82- ICT90- ICF3

(vedere HM-46, HM75A, HM-131)





ICOM (Portatli)

IC4A/AT/E-IC3A/AT-IC12A/AT/E-IC80AD

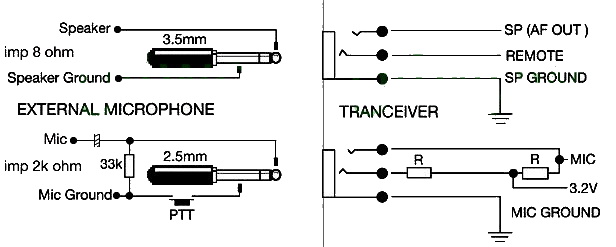

ICOM (Portatili)

ICT8A, ICT8E





ICOM

IC-211 IC-701



  1. MIC
  2. PTT
  3. N/C
  4. GROUND







ICOM

IC-120-271A-271E-275-290-228-229-229H-22U-25-25E-27-27E-28-29E-255-260-290-2400-2500-3200-3210-3220
IC-37A-38A-375-45-47-77-78-451-471A-475-48-490-505-551-560-575-707-718-720-725-726-728-729-730-735-736-737/A-738
IC-740-745-746-751/A-756/PRO-761-765-775-781-820H-821-821H-900-901-901H-910X-970-1200-1201-1271-1275



  1. MIC (giallo)
  2. REPEATER TONE (+ 8/9 Volt alcuni modelli)
  3. UP/DOWN
  4. N/C (squelch alcuni modelli)
  5. PTT (rosso)
  6. EARTH (nero)
  7. MIC SCREEN
  8. N/C (verde) (altoparlante esterno alcuni modelli)


(per IC-27 / 27E vedere IC-HM24) (IC-22U vedere IC-HM8)






ICOM

IC-7200-IC-7600


  1. MIC
  2. +8 Volt
  3. UP/DOWN
  4. squelch
  5. PTT
  6. PTT EARTH
  7. MIC SCREEN
  8. AUDIO OUT


(vedere SM-30, SM-50)






ICOM

IC24G-IC251E-IC451E (vedere SM-5 plus IC-HM7 hand mic & SM-5 desc mic)


  1. MIC (bianco connection at +9 VOLT above earth)
  2. NC
  3. NC
  4. NC
  5. PTT (rosso)
  6. PTT (nero)
  7. MIC SCREEN
  8. NC









MICROPHONE MODEL'S

IC-SM8 IC-SM6 IC-HM7 IC-HM11 IC-HM12 IC-HM14 IC-HM15 IC-HM22 IC-HM24 IC-HM36
