Nuova versione "K" con Step a 8.33 Khz
ripetitore a bande incrociate (Cross-Band)

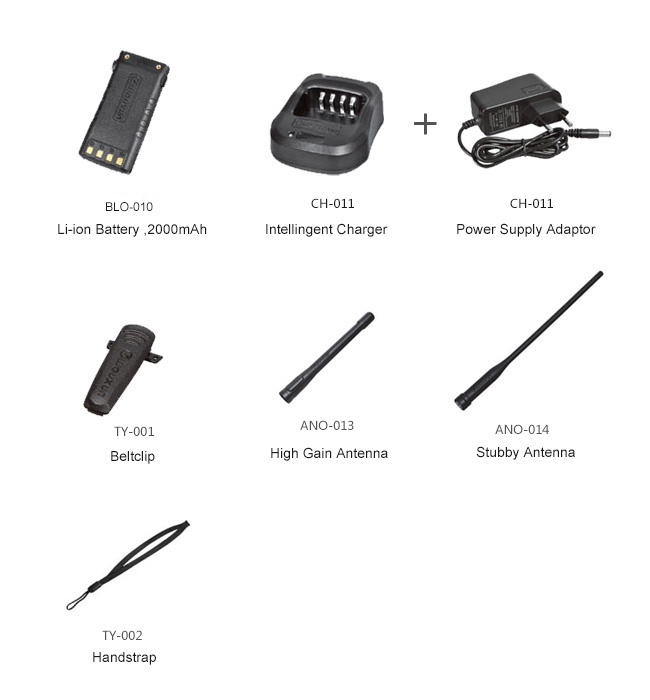

Pacco batteria da 2000 mAh di serie
2 Antenne in dotazione
Ricezione banda aeronautica in AM con step a 8.33 Khz
VERSIONE EXPORT 136-174/400-520 MHz
 Cross Band Repeater
Large Color Screen
Completely turn off display screen background light
Completely trun off flickering indicator light
Dual Receiving
Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
RX on the same/different bands of A&B areas simultaneously
Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
Channel Groups Scanning
Memory Channels 999
QT/DQT Encoding/Decoding,QT/DQT Scan
Non-Standard CTCSS can be set arbitrarily
VOX and SOS function
Reverse Frequency
mplitude-frequency PTT settings
ncoming Message Display Caller ID display
DTMF Encoding&Decoding
All Calls,Group Calls And Selective Calls
PriorRemote Alarmity Scan Function
Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
Voice Guide:Chinese/English
Chinese/English Screen Display
English Channel Name Edit
Bright Flashlight illumination
Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
Stopwatch
Multi Definition for Sidekeys
Superheterodyne Receiver Type
| Frequency Range |
suitable for different countries or areas
1 TX: 136-174MHZ(FM)
400-512MHZ(FM)
2 RX: 76-108MHZ(FM)
108-136MHZ(air ground)
136-180MHZ(FM)
230-250MHZ(FM)
350-400MHZ(FM)
400-512MHZ(FM)
700-985MHZ(FM)
|
| Step |
2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4VDC |
| Antenna Impedance |
50Ω |
| Weight |
490 g |
| Size |
123 x 58 x 31 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
108-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W |
|
