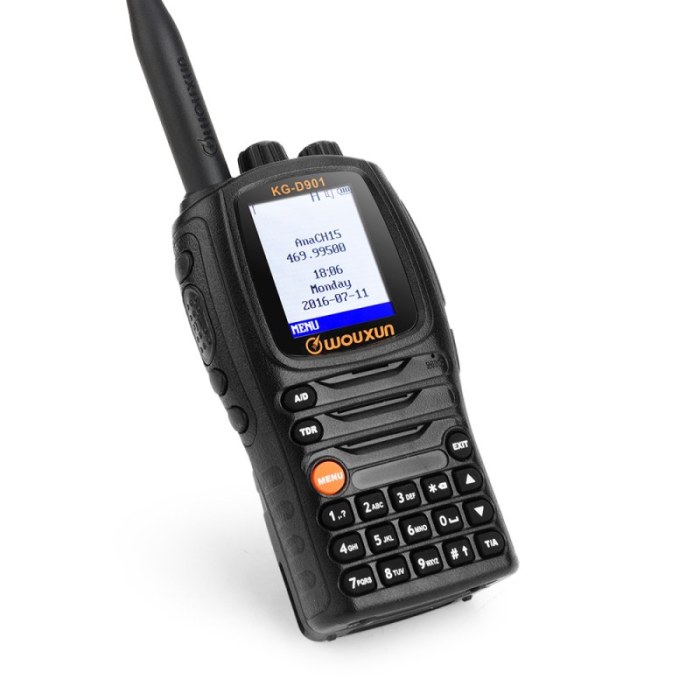

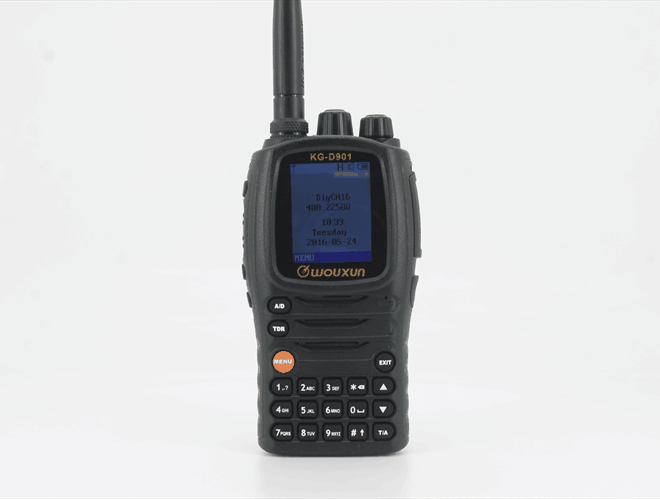

Ricetrasmettitore UHF analogico/digitale DMR
Description of Features
01 English Voice Guide
02 Power Save
03 VOX Function
04 Transmit Overtime Forbidden
05 Inner Microphone Gain
06 Low Voltage Voice Prompt
07 SOS Alarm
08 ANI ID
09 Scan Group Setting
10 Scan Channel Selection
11 Digital Encryption
12 LED Flashlight
13 Multi-Function Program for Sidekeys
14 One Key Switch Digital / Analogue Mode
15 One Key Switch High / Low Power
16 PTT ID
17 English Typewriting
18 Contact Edit
19 English Menu
20 Remote Control
21 Remote Monitor
22 MSG Send and Receive
23 Intellingent Charger
| Integral part |
| Mode |
DMR |
|
Frequency Range
|
400-470MHz
|
|
Channel Spacing
|
Digital : 12.5KHz
|
|
Channel number
|
16
|
|
Standard Package
|
2000mAh , Lithium-ion
|
|
Working temperature
|
-20℃～+50℃
|
| Storage temperature |
-40℃～+80℃ |
|
Working Voltage
|
7.4VDC
|
|
Working Currency
|
< 1300mA
|
|
Weight
|
261 g
|
|
Size
|
65 x 33 x 124 (mm)
|
| Receiver |
|
Frequency Stability
|
±2.5ppm |
|
Inter-modulation
|
65dB
|
| Co-channel Rejection |
-8dB@12.5KHz |
| Spurious Inhibition |
-57dBm@<1GHz , -47dBm@>1GHz |
| Block |
84dB |
| Adjacent Channel Selectivity |
60dB@12.5KHz |
| Spurious Response |
≥70dB |
|
Regulated Audio Power
|
1W
|
|
Digital Sensitivity
|
0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%) |
| Transmitter |
|
|
wide
|
narrow
|
| Transmission Power |
≤5W |
| FM Noise |
40dB@12.5KHz |
| Transmission Spurious |
-36dBm@<1GHz , -30dBm@>1GHz |
| Adjacent Power |
-60dB@12.5KHz |
| Bandwidth Limit |
2.5KHz@12.5KHz |
| Spare Time Slot Power |
-57dBm |
| Modulation Characteristics |
+1dB~-3dB |
Digital Transmission
Bit Error Rate |
≤3% |
| Output Power |
≤5W |
4FSK Digital
Modulation Method |
12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE |
|
