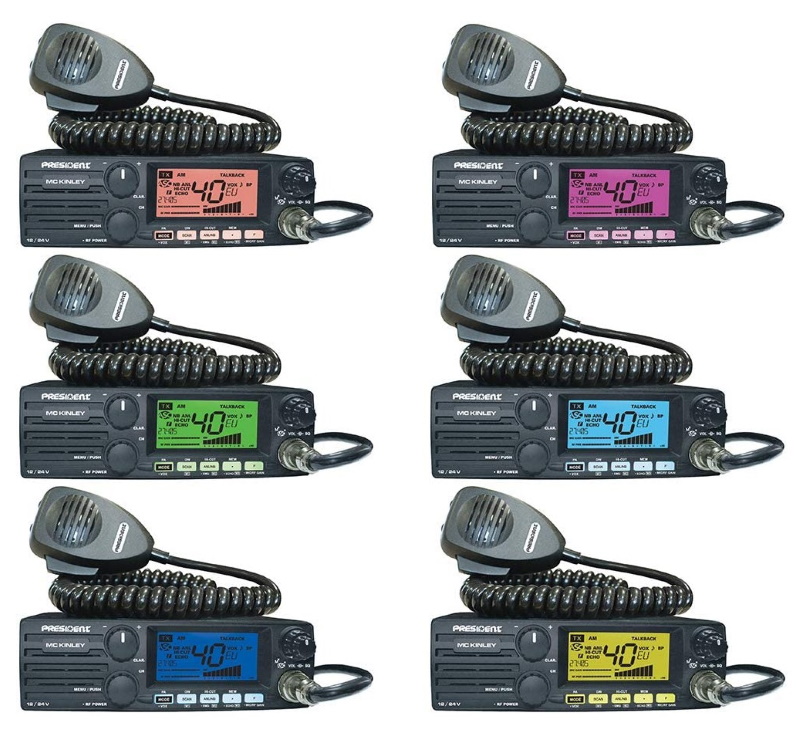

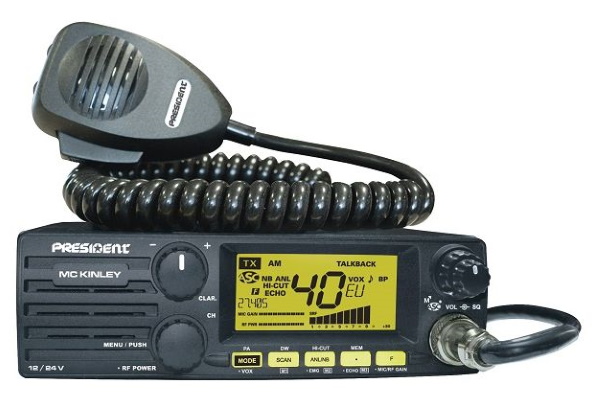

PRESIDENT MC KINLEY

apparato CB 27 Mhz omologato all mode AM/FM/LSB/USB

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• 40 channels AM / FM / LSB / USB
• Volume adjustment and ON/OFF
• Manual squelch and ASC
• Multi-functions LCD display
• Frequencies display
• S-meter
• Vox function (Hands free)
• ANL filter , NB and HI-CUT
• RF Gain / Mic Gain
• RF Power
• Clarifier
• Channels and memories scan
• 3 Memories
• Dim
• F function key
• Beep Function
• Roger Beep
• Mode switch AM / FM / LSB / USB
• Dual watch
• Automatic SWR (Power Reading /SWR)
• Preset channel programmable (EMG 1&2)
• TOT (Time out timer)
• Front microphone plug
• Microphone Electret or Dynamic
• External loudspeaker jack

General
• Number of channels: 40
• Modulation modes: AM / FM / USB / LSB
• Frequency ranges: from 26.965 MHz to 27.405 MHz
• Antenna impedance: 50 Ohms
• Power supply: 12 V / 24 V
• Size: 170 (W) x 150 (D) x 52 (H)
• Weight: 1.1 kg
• Accessories supplied:
…power cord with fuse
…1 microphone UP/DOWN and its hanger
…1 mounting bracket with fixing screws

Transmission
• Frequency allowance: +/- 300 Hz
• Carrier power: 4 W AM / 4 W FM / 12 W USB / 12 W LSB
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response: 300 Hz to 3 KHz in AM/FM/USB/LSB
• Emitted power in the adj. channel: inferior to 20 µW
• Microphone sensitivity: 3,0 mV
• Drain: 3 A (with modulation)
• Modulated signal distortion: 1,8 %

Reception
• Maxi. sensitivity at 20 dB sinad: 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB)
• Frequency response: 300 Hz to 3 kHz in AM/FM
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 W
• Squelch sensitivity:
…minimum 0.2 µV - 120 dBm
…maximum 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain:
…400 mA nominal
…1000 mA maximum

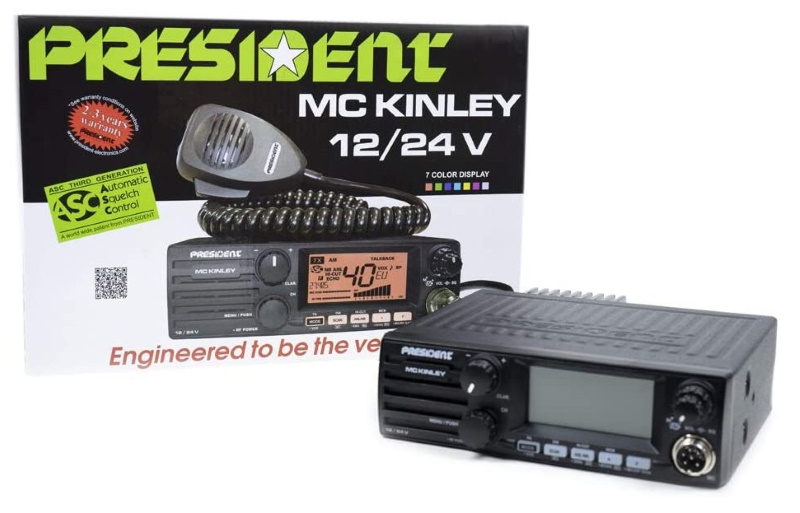

PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Bracket
1 Pc of Microphone
1 Pc of Power Cable
1 Pc of Mounting materials
1 Pc of User Manual in English, French, Spanish, Polish
