Electrical Data |
- |
Type: colinear dipole array |
- |
Frequency range: 5470-5875 MHz for WLAN system |
- |
Impedance: 50Ω |
- |
Radiation (H-plane): 360° omnidirectional |
- |

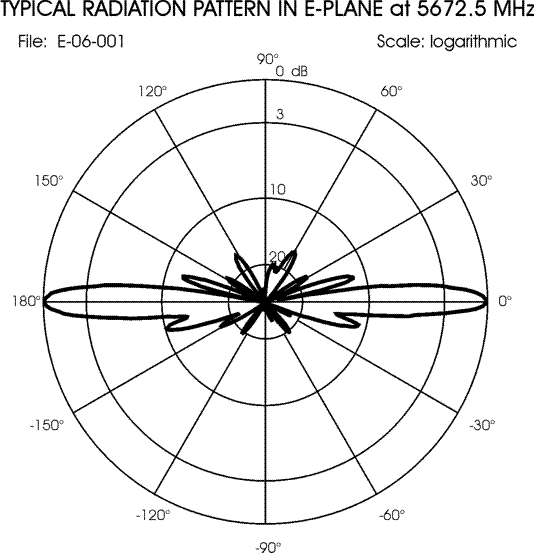

Radiation (E-plane): beamwidth @ -3 dB = 10° @ center freq. |
- |
Radiation angle: 0° |
- |
Polarization: linear vertical |
- |
Gain: 10 dBi |
- |

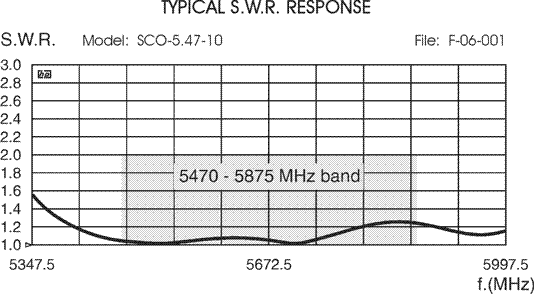

SWR in bandwidth: ≤ 1.5 |
- |
Max. power (CW) @ 30°C: 20 Watts |
- |
Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short |
- |
Connector: N-female |
|
|
Mechanical Data |
- |
Materials: Aluminium, Fiberglass, Brass, PCB |
- |
Wind load / resistance: 13 N @ 150 Km/h / 200 Km/h |
- |
Wind surface: 0.01 m² |
- |
Height (approx.): 400 mm |
- |
Weight (approx.): 365 gr |
- |
Operating temperature: -40° C to +80° C |
- |
Mounting mast: Ø 35-54 mm |
