| Electrical data |
| • |
Type: Cavity backed |
| • |
Frequency range: 2400-2485 MHz for WLAN system |
| • |
Impedance: 50Ω unbalanced |
| • |

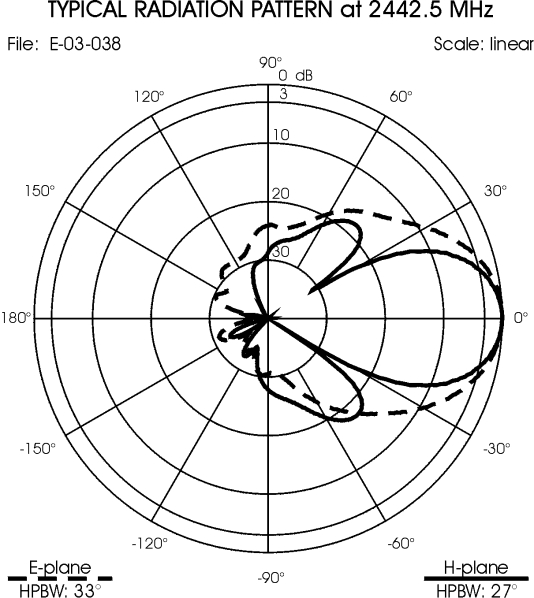

Radiation (H-plane): beamwidth at -3 dB = 33° |
| • |
Radiation (E-plane): beamwidth at -3 dB = 27° |
| • |
Radiation angle: Mechanical Bracket angle function |
| • |
Front to back ratio: ≥ 25 dB |
| • |
Polarization: vertical or horizontal |
| • |
Gain: 12.9 dBd - 15 dBi |
| • |
V.S.W.R. in bandwidth: ≤ 1.6:1 |
| • |
Max. power: 20 Watts (CW) at 50° C |
| • |
Feed system / position: direct DC-ground / center |
| • |
Connection: SMA-female bulchead |
| |
|
| Mechanical data |
| • |
Housing materials:
Case: aluminium grey RAL 9007
Antenna element: brass
Bracket and hardware: Stainless Steel |
| • |
Radome material: light grey RAL 7035 thermoplastic UV stabilized |
| • |
Wind load / resistance: 104 N at 150 Km/h / 160 Km/h |
| • |
Wind surface: 0.06 m² |
| • |
Dimensions (approx.): Ø 275 x 80 mm without bracket |
| • |
Weight (approx.): 720 gr |
| • |
Mounting mast:
mast: Ø 35-50 mm whit clamp included
wall whit mounting screws (not included) |
