| Dati Elettrici |
| • |

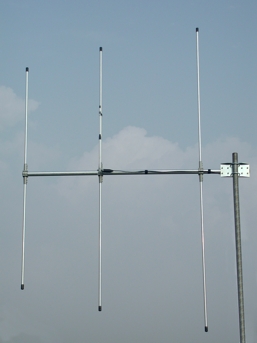

Tipo: Yagi 3 elementi |
| • |
Frequency range:
SY 68-3: 68-78 MHz |
| • |
Impedenza: 50Ω unbalanced |
| • |

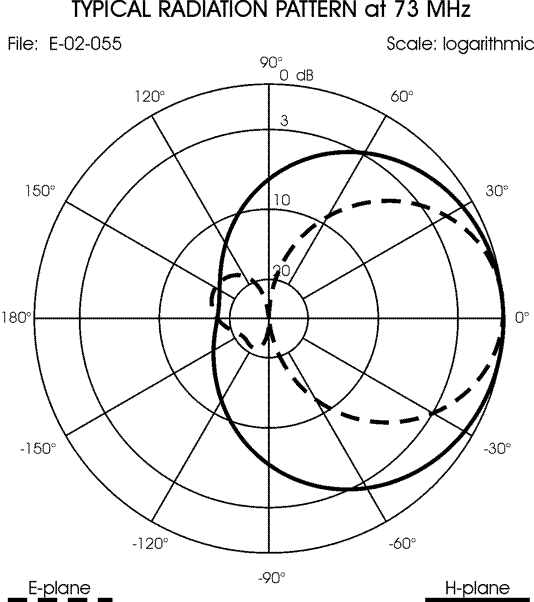

Radiation (H-plane): beamwidth @ -3 dB = 130° at center freq. |
| • |
Radiation (E-plane): beamwidth @ -3 dB = 70° at center freq. |
| • |
Front to back ratio: ≥ 15 dB |
| • |
Polarization: Linear vertical or horizontal |
| • |
Guadagno: 7 dBi |
| • |
SWR in bandwidth: ≤ 1.5 |
| • |
Max. power: 350 Watts (CW) at 30° C |
| • |
Feed system / position: Gamma match / center |
| • |
Connettore: UHF-female with rubber protection cap |
| |
|
| Dati Meccanici |
| • |
Materiali: Aluminium, die-cast zamak, EPDM rubber, zinc plated steel, chromed brass |
| • |
Wind load:
SY 68-3: 203 N @ 150 Km/h |
| • |
Wind resistance: 120 Km/h |
| • |
Wind surface:
SY 68-3: 0.166 m² |
| • |
Dimensioni (approx.):
SY 68-3: 1600x2235 mm |
| • |
Boom/elements diameter: 33mm/16mm |
| • |
Turning radius (approx.):
SY 68-3: 1875 mm |
| • |
Peso (approx.):
SY 68-3: 3360 gr |
| • |
Operating temperature: -40° C to +80° C |
| • |
Mounting mast: Ø 35-52 mm |
