Image Sensor   5 Mega Pixels Color CMOS

Max. Pixel Size  2560x1920

Lens    F=3.1; FOV=52°;Auto IR-Cut

IR Flash  65 Feet/20 Meters

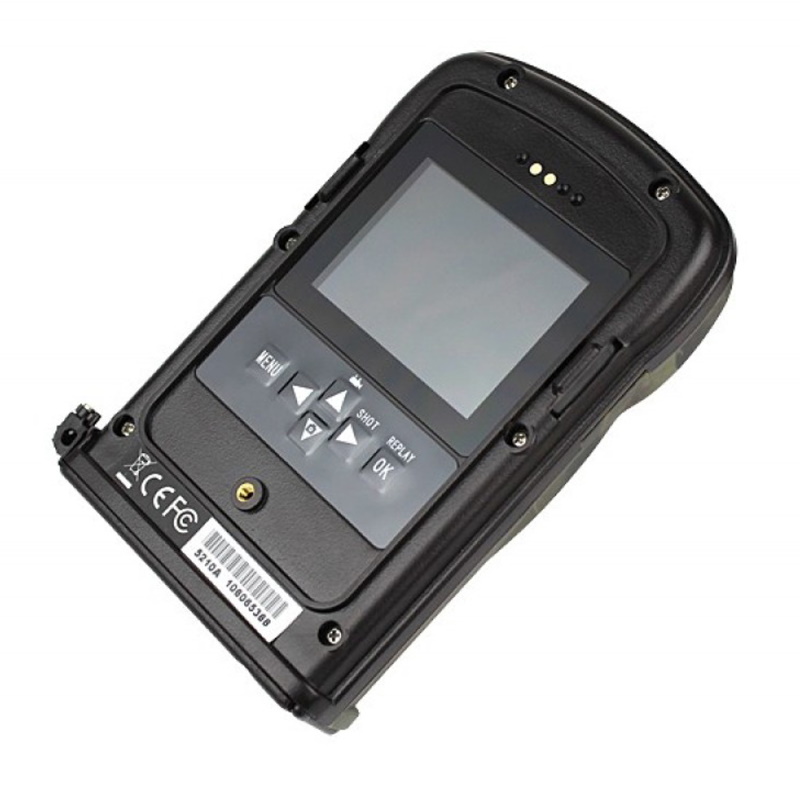

LCD Screen  48x35.69mm(2.36");480(RGB)*234DOT;16.7M Color

Operation  Keypad 6 Keys

Picture Size  5MP/12MP/1.3MP =2560X1920/4000X3000/1280X960;

Video Size  640x480: 20fps;320x240: 20fps

PIR Sensitivity  High/Normal/Low

PIR Sensing Distance 65ft/20m（Below 77°F/25°C at the Normal Level）

Prep PIR Sensing Angle  Left and right light beams form an angle of 100°; Each lens covers 10°

Main PIR Sensing Angle  35°

Operation Mode  Day/Night

Trigger Time  1.1 Second (When using the 2G SD card)

Trigger Interval 0sec. - 60min;Programmable

Shooting Numbers 1~6

Video Length 1-120sec.;Programmable

Camera +Video First take Picture then Video

Playback Zoom  In 1~16 Times

Time Stamp  On /Off; Include serial no., temperature and moon phase

Timer  On/Off; Programmable

Password  4-Digit Numbers

Device Serial No. 4 digits and 26 alphabets set by yourself

Time Lapse  On/Off; 1 Second ~ 24 Hours Programmable

MMS Status VGA = 640x480; QVGA = 320x240;SMS;OFF Programmable

MMS Numbers  “0” = Unlimited; 0 ~ 99/Day

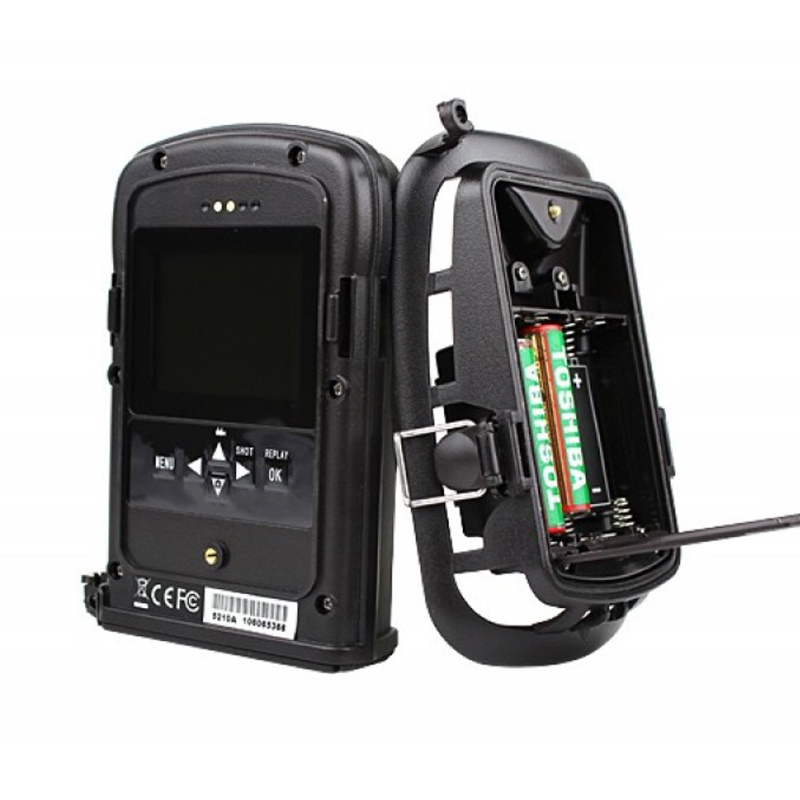

Power Supply 4xAA; Expandable to 8xAA (With additional battery box)

External DC Power Supply Plug Size: 4.0x1.7 ,6 ~ 12V (1 ~ 2A)

Stand-by Current 0.4mA

Stand-byTime 3～6 Months（4xAA～ 8xAA）

Auto Power Off Auto power off in 2 minutes while no keypad controlling

Power Consumption 150mA (+350Ma when IR LED lights up)

Low Battery Alarm 4.2~4.3V

Interface  TV out; USB; SD Card Slot; 6V DC External

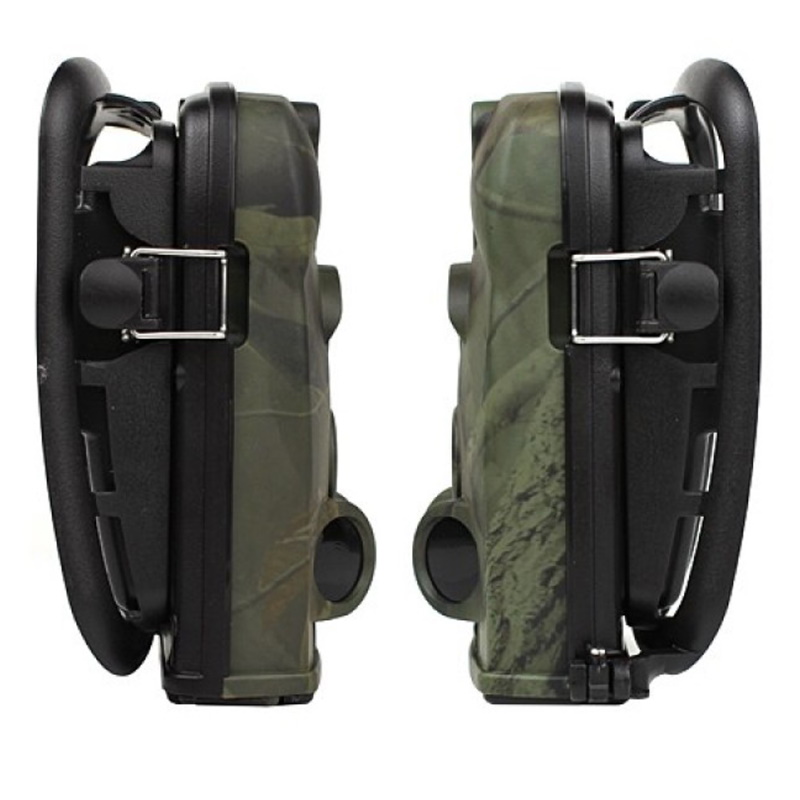

Mounting  Strap; Tripod Nail

Waterproof  IP54

Operation Temperature -22~+158°F/-30 ~+70°C

Operation Humidity 5% ~ 95%

Certificate  FCC & CE & RoHS
