Vai direttamente a connessioni per:

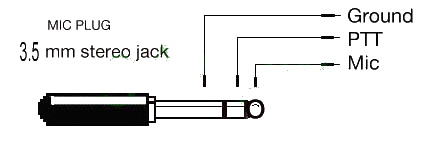

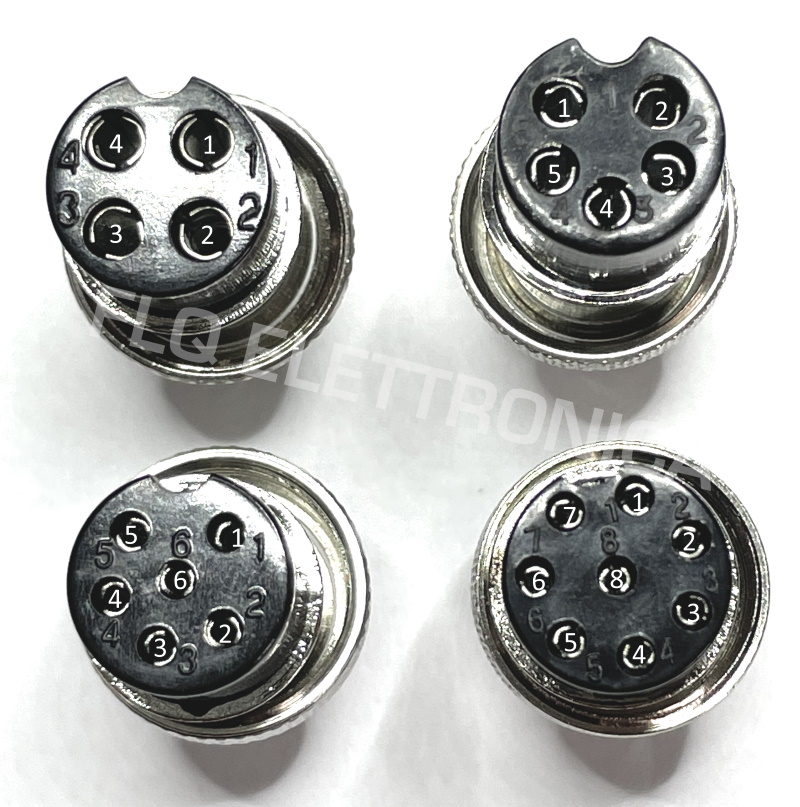

Connettori comuni per microfoni con relativa numerazione dei PIN

















X=(cannon x) L=(Latch) R=(rubber compound)








TRIO/KENWOOD






Microfoni KENWOOD

KENWOOD MC-10 MICROPHONE
KENWOOD MC-30 / 35 MICROPHONE
KENWOOD MC-42S MICROPHONE
KENWOOD MC-43 MICROPHONE
KENWOOD MC-44 MICROPHONE
KENWOOD MC-45 MICROPHONE (mk1)
KENWOOD MC-45 MICROPHONE (mk2)
KENWOOD MC-46 MICROPHONE
KENWOOD MC-47 MICROPHONE
KENWOOD MC-48B MICROPHONE
KENWOOD MC-50 MICROPHONE pdf
KENWOOD MC-52DM MICROPHONE
KENWOOD MC-53DM MICROPHONE
KENWOOD MC-55 MICROPHONE
KENWOOD MC-57 MICROPHONE
KENWOOD MC-58 MICROPHONE
KENWOOD MC-59 MICROPHONE
KENWOOD MC-60 MICROPHONE
KENWOOD MC-60A MICROPHONE
KENWOOD MC-80 MICROPHONE
KENWOOD MC-85 MICROPHONE
KENWOOD MC-85 SCHEMATIC pdf
KENWOOD MC-90 MICROPHONE
KENWOOD SMC-25 SMC-30 SPEAKER/MIC
KENWOOD SMC-32 SPEAKER/MIC
KENWOOD SMC-33 SPEAKER/MIC
KENWOOD SMC-32 SMC-33 SMC-34 SCHEMATIC pdf
KENWOOD KMC-9C KMC-30 KMC-32 KMC-35 KMC-36 MICROPHONES

MJ-88 CONNECTING CABLE
KENWOOD MICROPHONE COMPATIBILITY LIST pdf







KENWOOD (Handheld Tranceiver's)

TH-22A/AE TH-28/AE TH-42A/AE TH-48/AE TH-78A/E TH-F6 TH-F7 TH-F7E THG-71 TH-D7A/E
TH-K2AT TH-K2E TH-K4E TH-K4AT TH-235 UBZ-LJ8BE UBZ-LJ8SLE UBZ-LJ8YE VBZ-LH14 VBZ-LF AR-14 GR-14
(see SMC-32 SMC-33 SMC-34 above for external microphone and PC interconnection)






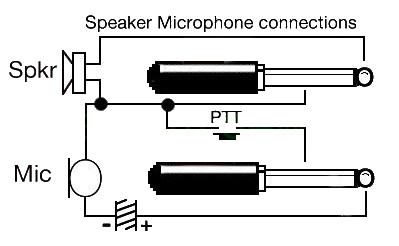

KENWOOD (Handheld Tranceiver's) TR-2500 TR-2600



(see SMC-25/SMC-30 above)




KENWOOD

T599S-TS120S-120V-700G-700S-130S-130V-490-520S-530S-820S-830S
TR2300-TR2200-TR2200GX-TR3200-TR7010-TR7200-TR7200G-TR7400A-TR7500-TR7600-TR7625



PIN1 MIC

PIN2 PTT

PIN3 PTT/EARTH

PIN4 SCREEN AND EARTH





7 PIN REMOTE PLUG/SOCKET

KENWOOD

TS120-130-140-180-430-440-450-530-570-680-690-830-870-940-950.



PIN1 SPEAKER OUT

PIN2 RELAY COMMON GROUND/EARTH

PIN3 PTT FOR FOOT SWITCH

PIN4 RELAY CLOSED ON TRANSMIT

PIN5 RELAY OPEN ON TRANSMIT

PIN6 ALC INPUT

PIN7 +12VOLTS ON TRANSMIT ( 10 Ma Max )

PLUG SHELL EARTH.




6 PIN ACC PLUG/SOCKET

KENWOOD

TS-450-690-570-850-870-950.





PIN1 SIGNAL GROUND/EARTH

PIN2 TRANSMIT DATA

PIN3 RECEIVE DATA

PIN4 CTS ENABLE TX

PIN5 RTS ENABLE RX

PIN6 N/C

SHELL EARTH


13 PIN ACC2 PLUG

KENWOOD

TS440-450-680-690-570-711-790-811-850-870-940-950



PIN1 N/C

PIN2 N/C

PIN3 RX AUDIO OUT

PIN4 SCREEN FOR PIN3

PIN5 SQUELCH CONTROL OR N/C

PIN6 S/METER OUTPUT

PIN7 N/C

PIN8 CHASSIS/GROUND

PIN9 PTT- STANDARD MIC INPUT IS MUTED

PIN10 N/C

PIN11 MIC INPUT

PIN12 SCREEN FOR PIN 11

PIN13 PTT- STANDARD MIC INPUT IS ACTIVE

SHELL EARTH


KENWOOD

TR9000-9030-9130-9300-9500-7700-7730-7750-7800-7850-7930-7950-8400



PIN1 MIC

PIN2 PTT

PIN3 DOWN

PIN6/CENTER EARTH

PIN4 UP

PIN5 NC + 8VOLT SOME MODELS





KENWOOD

TR7600-TR7625



PIN1 MIC

PIN2 PTT

PIN3 N/C

PIN4 CHASSIS/GROUND

PIN5 MIC SCREEN





KENWOOD TS480 ( 8 Pin modular Plug )



PIN1 UP

PIN2 +8 VOLTS

PIN3 GND

PIN4 PTT

PIN5 MIC GND

PIN6 MIC

PIN7 N/C

PIN8 DOWN



UPDATE

Some errors in the TS-480 schematics leading to RF feedback when using other than the stock microphone
have been noted by Kenwood

MORE INFO TO FOLLOW






KENWOOD

TS-50-60-140-430-440-450-570-660-670-780-930-430-670-711 TS-811-850-870-930-940-950-440-701-790-680-690-TS-2000
TR-3200-7900-7950-50-751-851
TM-201A-201B-401A-TM401B-211-221-231-241-321-331-3530-421-431-441-521-531-541
TM-621-631-701-721-731-2530-2550-2570
TW4000-4100



PIN1 MIC

PIN2 PTT

PIN3 DOWN

PIN4 UP

PIN5 + 8VOLT Some models ( 10 Ma )

PIN6 (N/C Some models )

PIN7 MIC GROUND.

PIN8 GROUND ( STBY )





KENWOOD

TM-251-255-261-271-271E-451-455-461-641-642-708-732-733-741-742-941-942 ( 8 Pin modular Plug )
TMG-707 TMD-700 TMD700A TMV-71A.TMV-71E-V7A.

KENWOOD PMR TRANCEIVER MODELS

TK-90-7108HM-7108M-7160E-7160HM-7160M-7162E-7180E-7189E
8108HM-8108M-8160E-8160M-8162E-8180E-8189-TK90 (see KMC-30 /32 /35 above)



PIN1 UP

PIN2 +8 VOLTS (100ma max)

PIN3 GND

PIN4 PTT

PIN5 MIC GND

PIN6 MIC

PIN7 N/C. RX AUDIO (some models)

PIN8 DOWN





KENWOOD

TM-271A ( 8 Pin modular Plug )



PIN1 N/C

PIN2 +8 VOLTS (100ma max)

PIN3 GND

PIN4 PTT

PIN5 MIC GND

PIN6 MIC (600 ohm impedance)

PIN7 N/C

PIN8 KEYPAD SERIAL DATA.






YAESU

Microfoni YAESU


YAESU YM-21 Microphone
YAESU YM-22 Microphone
YAESU YM-34 Microphone
YAESU YM-35 Microphone
YAESU YM-36 Microphone
YAESU YM-37 Microphone
YAESU YM-38 Microphone
YAESU YM-39 Microphone
YAESU YM-40 Microphone
YAESU YM-47 Microphone
YEASU YM-48 Microphone
YAESU YM-49 Microphone
YEASU YM-50 Microphone
YEASU YM-86 Microphone
YAESU YM-846 Microphone
YAESU YM-2500 Microphone
YAESU YD-148 Microphone
YAESU YD-844 Microphone
YAESU YE-7A Microphone
YAESU MD-1B8 Microphone
YAESU MD-1C8 Microphone
YAESU MD-2H8 Microphone
YAESU MH-1A3B Microphone
YAESU MH-1B8 Microphone
YAESU MH-10E8 MH-10F8 Microphone
YAESU MH-12A2B Microphone
YAESU MH-14A8 Microphone
YAESU MH-14B8 Microphone
YAESU MH-14D8 Microphone
YAESU MH-15C8 Microphone
YAESU MH-15D8 Microphone
YAESU MH-18A2B Microphone
YAESU MH-19A2B Microphone
YAESU MH-25A8J Microphone
YAESU MH-26 Microphone
YAESU MH-26G8J Microphone
YAESU MH-27 Microphone
YAESU MH-27A8J Microphone
YAESU MH-29A2B Microphone
YAESU MH-31 Microphone
YAESU MH-31B8 Microphone
YAESU MH-31A8J Microphone
YAESU MH-32A2B Microphone
YAESU MH-34 / MH-34B4 Microphone
YAESU MH-34C2B Microphone
YAESU MH-36 Microphone
YAESU MH-36A6J DTMF Microphone
YAESU MH-36B6JS Microphone
YAESU MH-36D8 Microphone
YAESU MH-36E8J DTMF Microphone
YAESU MH-37A4B Microphone
YAESU MH-42 Microphone
YAESU MH-42A6J Microphone
YAESU MH-42B6JS Microphone
YAESU MH-42B6J Microphone schematic pdf
YAESU MH-44A4B Microphone
YAESU MH-48 Microphone
YAESU MH-48A6J Microphone
YAESU MH-57A4B Microphone
YAESU MH-59A8J Microphone
YAESU MH-61A8J Microphone
YAESU MH-64A8J Microphone
YAESU MH-67A8J Microphone
YAESU MH-68A8J Microphone
YAESU MH-700D Microphone
YAESU MD-11A8J Microphone
YAESU MD-100 Microphone
YAESU MD-100A8X Microphone
YAESU MD-100/100AX schematic pdf
YAESU MD-200 Microphone
YAESU MD-200A8X Microphone
YAESU MD-200 Instruction Manual pdf

YAESU MICROPHONE COMPATIBILITY LIST

YAESU STANDARD MICROPHONE LIST

MORE YAESU MICROPHONE INFO

YAESU TNC INFORMATION







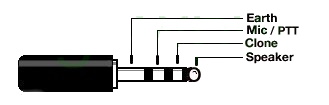

YAESU (Portatili)

VX-1R VXF-1 VX-2R VX-2E VX-3R VX-5R VX-7R VX-10 VXF-10 VX-110
VX-130 VX-131 VX-132 VX-150 VX-160 VX-180 VX-210 VX-210A VX-300 VX-400 VX-410 VX-420



(see MH-34 / MH-34B4 / MH-57A4B ABOVE)






YAESU (Aeronautici)

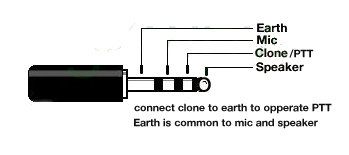

VXA-100 VXA-150 VXA-210



 (see MH-44A4B ABOVE)






YAESU (Fissi)

FTC-1023 FTC-1024 FTC-1043 FTC-1044

(see MD-2H8 above)







YAESU (Portatili)

FT-10R FT-40R FT-50R FT-60R



(see MH-37A4B ABOVE)







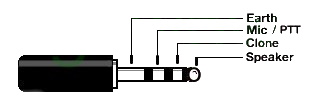

YAESU

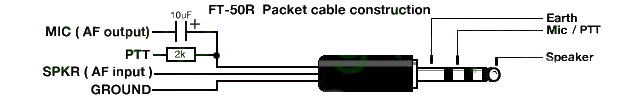

FT-50R FT-60R






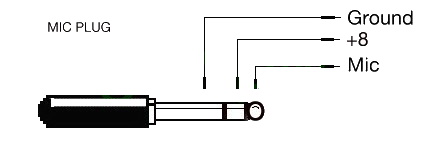

YAESU (Portatili)

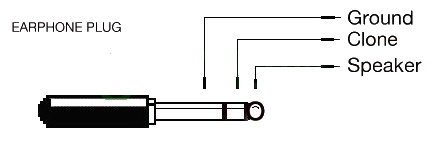

FT-51R (see MH-32A2B / MH-34C2)






YAESU (Portatili)

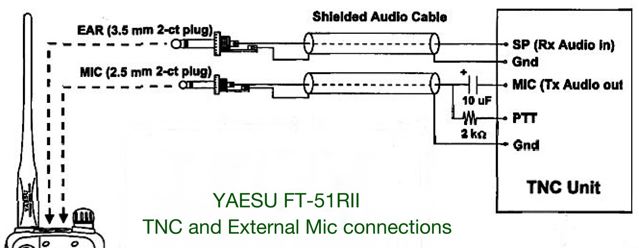

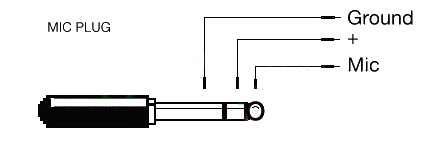

FT-51RII








YAESU (Portatili)

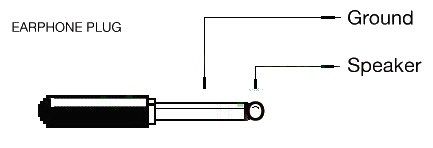

FT-470 FT-411 FT-811 FT-911 (see MH-32A2B / MH-34C2)






YAESU (Portatili)

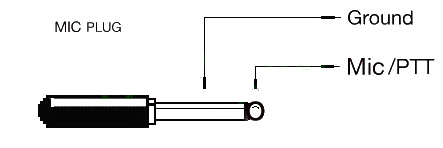

FT-23 FT-73 FT-23RII FT-73RII (see MH-32A2B / MH-34C2)



CLONE INFO pdf










YAESU (Portatili)

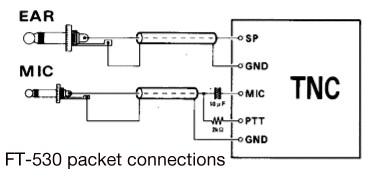

FT-530 (see MH-12A2B / MH-18A2B)








YAESU POLICE AND PUBLIC SAFETY CHANNELISED TRANCEIVERS
VX-2000 VX-2500 VX-3000 VX-3200 VX-4100 VX-4100E VX-4200 VX-4200E VXR-1000 VXR-7000

PIN1 FAST

PIN2 GROUND

PIN3 PTT

PIN4 MIC

PIN5 MIC EARTH

PIN6 + 5VOLTS

PIN7 UP

PIN8 DOWN







YAESU FT736-FT747GX-FT757GX-FT650-FT655-FT840-FT890-FT920-FT990-FT990D-FT847
FT1000-FT1000D-FT1000MP + MKV -FT2000



PIN1 MIC UP

PIN2 EARTH (+ 5VOLTS FT847-FT920-FT1000MP-FT2000)

PIN3 DOWN

PIN4 FAST SCAN

PIN5 EARTH

PIN6 PTT

PIN7 SCREEN/EARTH

PIN8 MIC




YAESU FT-ONE-FT77-FT102-FT707-FT767-FT767GX-FT980



PIN1 MIC UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 FAST SCAN

PIN5 CAUTION INTERCONNECTED TO PIN 2 (+5 VOLTS )

PIN6 PTT

PIN7 SCREEN/EARTH

PIN8 MIC







YAESU FT480R-FT780R (see YM-40 above)



PIN1 green MIC UP

PIN2 yellow EARTH / COMMON U/DOWN

PIN3 blue DOWN

PIN4 brown TONE CALL / LOCK

PIN5 orange EARTH TONE CALL / LOCK

PIN6 red PTT

PIN7 black SCREEN/EARTH

PIN8 white MIC




YAESU FT726 (see MD1-B8 MH1-B8 Microphone above)



PIN1 UP

PIN2 COMMON UP/DOWN

PIN3 DOWN

PIN4 FAST SCAN

PIN5 EARTH

PIN6 PTT

PIN7 SCREEN/EARTH

PIN8 MIC



YAESU CPU2500R-CPU2500RK SOMMERKAMP FT227
(see YM-2500 Microphone above)



PIN1 UP

PIN2 COMMON UP/DOWN

PIN3 DOWN

PIN4 PTT

PIN5 GROUND MIC/PTT

PIN6 MIC

click for schematic


YAESU FT-620B
(see YM-86 Microphone above)



PIN1 N/C

PIN2 N/C

PIN3 SCREEN

PIN4 PTT GROUND

PIN5 PTT

PIN6 MIC

click for schematic




YAESU FT75-FT221R-FT223-FT101B-FT101E-FT101Z-FT101ZD-FT301D-FT902-FT902DM (see YD148/YD844 microphone above)



PIN1 MIC SCREEN/EARTH (PTT EARTH ON FT101B/101E.FT101Z/101ZD.FT902/902DM)

PIN2 MIC

PIN3 PTT

PIN4 EARTH ON FT221R (N/C ON FT101Z/101ZD.FT101B/101E.FT902/902DM)




YAESU FTDX-100 FTDX-400 FTDX-401 FTDX-560 FT-200 FT-250(See YD-148 microphone above)





YAESU FT201-FT125C-FTC212-FT2B-FT300C-FT224-FT225RD-FT2FB-FT223-FT220-FTC212-FT300C FT301
FT7-FT227R-FT227RA-FT227RX-FT250-FT401B-FT501-FT625-FL101





(See YD-148 and YM-22 microphones above)



YAESU FT950



PIN1 MIC UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 FAST SCAN

PIN5 GROUND

PIN6 PTT

PIN7 SCREEN/EARTH

PIN8 MIC





YAESU FT840-FT990



PIN1 UP

PIN2 GROUND

PIN3 DOWN

PIN4 FAST

PIN5 GROUND (INTERCONNECTED ON TRANCEIVER TO PIN 2)

PIN6 PTT

PIN7 MIC GROUND/SCREEN

PIN8 MIC




YAESU FT2200



PIN1 UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 SPEAKER

PIN5 ACC

PIN6 PTT

PIN7 MIC GROUND/SCREEN

PIN8 MIC




YAESU FT2500M
8 Pin Modular plug (see MH-26G8J MH-27G8J)



PIN1 CALL BUTTON

PIN2 RX AUDIO

PIN3 PTT

PIN4 MIC

PIN5 GROUND

PIN6 + 5 VOLTS

PIN7 UP

PIN8 DOWN




YAESU FT2400H



PIN1 CALL BUTTON

PIN2 RX AUDIO

PIN3 PTT

PIN4 MIC

PIN5 GROUND

PIN6 + 5 VOLTS

PIN7 UP

PIN8 DOWN




YAESU FT-2600 (6 Pin modular Plug, see MH-42 and MH-36 microphone above)



PIN1 SW2

PIN2 CLONE

PIN3 + 9VOLT

PIN4 GROUND

PIN5 MIC

PIN6 MULTI SWITCHING SW1




YAESU FT-8500 (6 Pin modular Plug, see YM-39 microphone above)



PIN1 D11

PIN2 GROUND

PIN3 + 9VOLT

PIN4 GROUND

PIN5 MIC

PIN6 POWER SWITCH




YAESU FT5100



PIN1 UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 SPEAKER

PIN5 BAND

PIN6 PTT

PIN7 EARTH

PIN8 MIC




YAESU FT211-FT212R FT212RH-FT270-FT211RH-FT711-FT712-FT770-FT2311-FT2700-FT4700RH-FT711RH-FT770RH
(see microphones MH-15D8/ MH-15C8/ MH-14A8/ MH-14B8/ MH-14D8 above)



PIN1 UP

PIN2 +5 VOLT

PIN3 DOWN

PIN4 SPEAKER

PIN5 CPU/ TONE SW

PIN6 PTT

PIN7 GROUND

PIN8 MIC




YAESU FT230R-FT290R-FT690 FT730-FT790R



PIN1 MIC SCREEN/EARTH

PIN2 MIC

PIN3 PTT

PIN4 + 12VOLT (+ 5 VOLTS FT730-FT290R)

PIN5 SPEAKER

PIN6 UP

PIN7 DOWN




YAESU FT290RII-FT690RII-FT790RII (see MH-10E8 /MH-10F8 above)



PIN1 UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 SPEAKER

PIN5 N/C

PIN6 PTT

PIN7 GROUND

PIN8 MIC




YAESU FT215-FT715-FT3700-FT3800-FT3900-FT4600-FT4800-FT4900-FT5800



PIN1 UP

PIN2 + 5 VOLTS

PIN3 DOWN

PIN4 N/C

PIN5 RECALL

PIN6 RESET

PIN7 GROUND

PIN8 MIC




YAESU FT708R-FT208R HAND HELD
( mini ) 6 PIN



PIN1 MIC (white)

PIN2 SPEAKER (black)

PIN3 PTT (red)

PIN4 MIC SCREEN

PIN5 NC

PIN6 SPEAKER (blue)




YAESU FT897-FT857-FT817-FT900-FT-450 (8 pin Modular Plug)





PIN1 FAST SCAN

PIN2 GROUND

PIN3 PTT

PIN4 MIC

PIN5 MIC GROUND

PIN6 + 5VOLT

PIN7 UP

PIN8 DOWN




YAESU FT1500M-FT1802E-FT2800-FT7800M-FT8800E-FT8900R (6 Pin modular Plug, see MH-48 microphone above)



PIN1 SW2 (green)

PIN2 SW1 (brown)

PIN3 + 8VOLT (red)

PIN4 GROUND (screen)

PIN5 MIC (white)

PIN6 PTT (blue)(clone FT1802E)




YAESU FTM-350AR (6 Pin modular Plug, see MH-48A6J microphone above)



PIN1 SW2 (green)

PIN2 SW1 (brown)

PIN3 + 8VOLT (red)

PIN4 GROUND (screen)

PIN5 MIC (white )

PIN6 PTT (blue)(clone FT1802E)




YAESU FTM-10R/E (WITH BUILT IN MICROPHONE AND BLUETOOTH)

NEEDS MEK-M10 ADAPTER TO USE THE FOLLOWING EXTERNAL MICROPHONES



MH-68 A6J WATERPROOF MIC

MH-68 B6J WATERPROOF MIC


MEK-M10 ADAPTER CONNECTIONS pdf

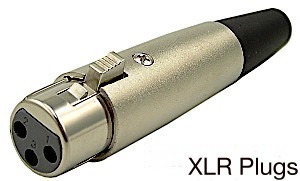

YAESU FTDX9000D (3 pin XLR Plug front panel) PLUS (8 pin Plug rear panel)





(XLR PLUG FRONT PANEL)


PIN1 MIC GRND

PIN2 MIC HOT

PIN3 MIC COLD









(8 PIN PLUG REAR PANEL)








PIN1 UP

PIN2 +5 VOLTS

PIN3 DOWN

PIN4 FAST SCAN

PIN5 GROUND

PIN6 PTT

PIN7 MIC GROUND

PIN8 MIC





YAESU

FT100-FT90-FT8100 (6 pin Modular Plug, see MH-36 microphone above)



PIN1 Multi-function switching for P,P1,P2 SW2

PIN2 N.C. 9600bps packet data out FT-90

PIN3 + 9VOLT

PIN4 EARTH

PIN5 MIC

PIN6 SW1,PTT,UP,DOWN,Acc

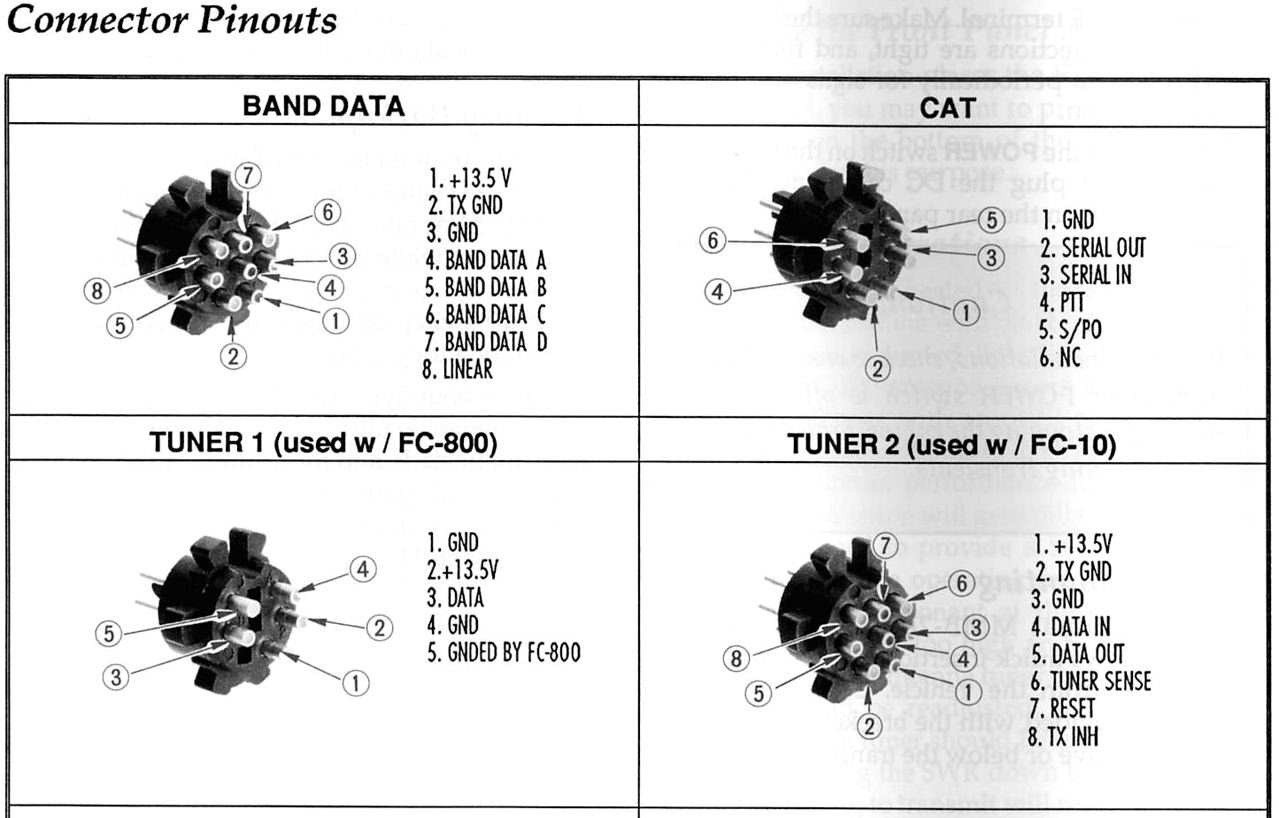

Yaesu "cat" pinout connections






Ulteriori informazioni su connessioni YAESU


(click for) YAESU FT-100 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-600 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-707 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-726 SERIES CONNECTION DIAGRAM
(click for) YAESU FT-736 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-747 SERIES CONNECTION DIAGRAMS
click for) YAESU FT-757 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-767 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-817 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-847 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-897 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-920 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-980 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-990 SERIES CONNECTION DIAGRAMS
(click for) YAESU FTM-10 SERIES CONNECTION DIAGRAMS pdf
(click for) YAESU FT-1000MP SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-2000 SERIES CONNECTION DIAGRAMS pdf
(click for) YAESU FT-7100 SERIES CONNECTION DIAGRAMS
(click for) YAESU FT-8900 SERIES CONNECTION DIAGRAMS pdf
(click for) YAESU FTDX-9000D SERIES CONNECTION DIAGRAMS











ICOM


ICOM

IC7400-IC746-IC746PRO-IC756PRO-IC7700-IC7800 (see HM-36 below )



PIN1 MIC + DC VOLTS FOR ICOM ONLY MICROPHONE

PIN2 + 8VOLTS 10Ma TO AVOID DAMAGING THE REGULATOR DO NOT SHORT TO GROUND

PIN3 UP/DOWN

PIN4 SQUELCH

PIN5 PTT

PIN6 GROUND

PIN7 MIC SCREEN/EARTH

PIN8 AUDIO OUT






ICOM

IC703-IC706MK1-IC706MK2-IC706MK3-IC2000-IC2000H (8 Pin Modular Plug)




PIN1 + 8VOLT

PIN2 UP/DOWN

PIN3 AUDIO OUT

PIN4 PTT

PIN5 MIC GROUND

PIN6 MIC

PIN7 GROUND/EARTH

PIN8 SQUELCH




ICOM

IC-E208-IC2100H-IC2200H-IC2725E-IC2820 (See HM-133 below, 8 Pin Modular Plug)




PIN1 + 8VOLT OUTPUT ( 10 ma max )

PIN2 UP/DOWN

PIN3 + 8VOLTS IN ( No connection IC2100H )

PIN4 PTT

PIN5 MIC GROUND

PIN6 MIC

PIN7 GROUND/EARTH

PIN8 DATA IN ( No connection IC2100H )




ICOM

IC-7000 (8 Pin Modular Plug )

IMPORTANT! SEE HM-151 MICROPHONE INFO BELOW



PIN1 + 8VOLT OUTPUT ( 10 ma max )

PIN2 UP/DOWN

PIN3 + 8VOLTS SW

PIN4 PTT

PIN5 MIC GROUND

PIN6 MIC

PIN7 GROUND/EARTH

PIN8 DATA IN




ICOM

IC-2800 (8 Pin Modular Plug ) SEE HM-98 MICROPHONE BELOW




PIN1 + 8VOLT OUTPUT ( 10 ma max )

PIN2 UP/DOWN

PIN3 + 8VOLTS SW

PIN4 PTT

PIN5 MIC GROUND

PIN6 MIC

PIN7 GROUND/EARTH

PIN8 DATA IN




ICOM

IC-2800 (8 Pin Modular Plug ) SEE HM-98 MICROPHONE BELOW



PIN1 + 8VOLT OUTPUT ( 10 ma max )

PIN2 UP/DOWN

PIN3 + 8VOLTS SW

PIN4 PTT

PIN5 MIC GROUND

PIN6 MIC

PIN7 GROUND/EARTH

PIN8 DATA IN




ICOM LAND MOBILE(8 Pin Modular Plug ) SEE SM-25 SM-100/T MICROPHONES BELOW.
F320-F420-F1020-F2020-F121-F221-F521-F620-F621/TR-F1721D-F182D-F272D
F282D-FR3000-FR4000-FR5000-FR5100-FR6100




PIN1 + 8 VOLTS

PIN2 UP/DOWN.

PIN3 AF OUTPUT.

PIN4 PTT.

PIN5 MIC GROUND.

PIN6 MIC AUDIO.

PIN7 GROUND/EARTH.

PIN8 SQUELCH ( SOME MODELS )






ICOM LAND MOBILE (8 Pin Modular Plug) SEE SM-26
IC-F300-IC-F510-IC-F1000-IC-F1600.





ICOM HAND HELD

ICE90- IC91A/E- ICE7- ICT2A/E/H-ICT3H ICT7A/E/H- ICT21A/E -ICT22 -ICT41E- ICT81A/E- ICV8- ICV21AT- ICV82
ICV82- ICT90- ICF3

(SEE HM-46 HM75A HM-131 BELOW)




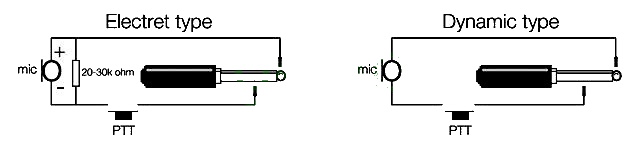

ICOM HAND HELD IC4A/AT/E-IC3A/AT-IC12A/AT/E-IC80AD







ICOM HAND HELD ICT8A- ICT8E





ICOM IC-211 IC-701




PIN1 MIC

PIN2 PTT

PIN3 N/C

PIN4 GROUND.




ICOM

IC-120-271A-271E-275-290-228-229-229H-22U-25-25E-27-27E-28-29E-255-260-290-2400-2500-3200-3210-3220
IC-37A-38A-375-45-47-77-78-451-471A-475-48-490-505-551-560-575-707-718-720-725-726-728-729-730-735-736-737/A-738
IC-740-745-746-751/A-756/PRO-761-765-775-781-820H-821-821H-900-901-901H-910X-970-1200-1201-1271-1275




PIN1 MIC (yellow)

PIN2 REPEATER TONE (+ 8/9 volts some models)

PIN3 UP/DOWN

PIN4 N/C (squelch some models )

PIN5 PTT(red)

PIN6 EARTH (black)

PIN7 MIC SCREEN

PIN8 N/C (green)(external speaker some models )


(For IC-27 / 27E see IC-HM24 below) (IC-22U see IC-HM8 below)


ICOM

IC-7200-IC-7600




PIN1 MIC

PIN2 + 8volts

PIN3 UP/DOWN

PIN4 squelch

PIN5 PTT

PIN6 PTT EARTH

PIN7 MIC SCREEN

PIN8 AUDIO OUT


( ee SM-30 SM-50) below





ICOM

IC24G-IC251E-IC451E (See SM-5 plus IC-HM7 hand mic & SM-5 desc mic)




PIN1 MIC (white connection at + 9VOLTS above earth)

PIN2 NC

PIN3 NC

PIN4 NC

PIN5 PTT (red)

PIN6 PTT (black)

PIN7 MIC SCREEN

PIN8 NC






Microfoni ICOM


ICOM SM2 MIC CONNECTIONS
ICOM SM5 MIC CONNECTIONS
ICOM SM6 MIC CONNECTIONS
ICOM SM8 MIC CONNECTIONS
ICOM SM10 MIC CONNECTIONS
ICOM SM20 MIC CONNECTIONS
MORE SM20 MIC INFORMATION
ICOM SM25 MIC CONNECTIONS
ICOM SM26 MIC CONNECTIONS
ICOM SM30 MIC CONNECTIONS
ICOM SM50 MIC CONNECTIONS
ICOM IC-HM5 MIC CONNECTIONS
ICOM IC-HM7 HAND MIC CONNECTIONS
ICOM- IC-HM8 HAND MIC CONNECTIONS
ICOM- IC-HM10 MIC CONNECTIONS
ICOM- IC-HM11 MIC CONNECTIONS
ICOM- IC-HM12 MIC CONNECTIONS
ICOM- HM12 MIC CONNECTIONS
MORE- IC-HM12 MIC INFORMATION
ICOM- IC-HM14 MIC CONNECTIONS
ICOM- IC-HM15 MIC CONNECTIONS
ICOM- HM-22 MIC CONNECTIONS
ICOM- HM-23 MIC CONNECTIONS
ICOM- HM-24 MIC CONNECTIONS
ICOM- HM-36 MIC CONNECTIONS
ICOM- HM-46 MIC CONNECTIONS
ICOM- HM-54 MIC CONNECTIONS
ICOM- HM-56/56A MIC CONNECTIONS
ICOM- HM-75A MIC CONNECTIONS
ICOM- HM77-HM78-HM79-HM95-HM97 MIC CONNECTIONS
ICOM- HM-90 WIRELESS MIC CONNECTIONS
ICOM- HM-95 MIC CONNECTIONS
ICOM- HM-96 MIC CONNECTIONS
ICOM- HM-97 MIC CONNECTIONS
ICOM- HM-98S MIC CONNECTIONS
ICOM- HM-100 HM-100T MIC CONNECTIONS
ICOM- HM-103 MIC CONNECTIONS
ICOM- HM-113-113V MIC CONNECTIONS
ICOM- HM-128L MIC CONNECTIONS
ICOM- HM-118-118TN MIC CONNECTIONS
ICOM- HM-131 MIC CONNECTIONS
ICOM-HM-148/G MIC CONNECTIONS
ICOM- HM-133 MIC CONNECTIONS
ICOM- HM-151 MIC CONNECTIONS (IC-7000 )
ICOM- HM-152 MIC CONNECTIONS
ICOM- HM-153L MIC CONNECTIONS
ICOM- HM-154 / HM-154T MIC CONNECTIONS
CONVERTING THE ICOM- HM-154 / HM-154T MIC FROM RJ-45 TO 8 PIN CONNECTIONS
ICOM- HM-158L MIC CONNECTIONS
ICOM- HM-166L MIC CONNECTIONS
IC-821H- ACC SOCKET CONNECTIONS


click for MORE ICOM INFORMATION
click for ICOM MICROPHONE COMPATIBILITY LIST 2009
click for ICOM CONNECTING CABLE REFERENCE LIST
click to download FREE ICOM MANUALS






CAUTION !



IF YOU WISH TO USE THE FOLLOWING ICOM MICROPHONE'S ( model's below ) ON

TRANCEIVERS OTHER THAN ICOM, CHECK THIS   link    INFORMATION ALSO






MICROPHONE MODEL'S

IC-SM8 IC-SM6 IC-HM7 IC-HM11 IC-HM12 IC-HM14 IC-HM15 IC-HM22 IC-HM24 IC-HM36









ALINCO










ALINCO

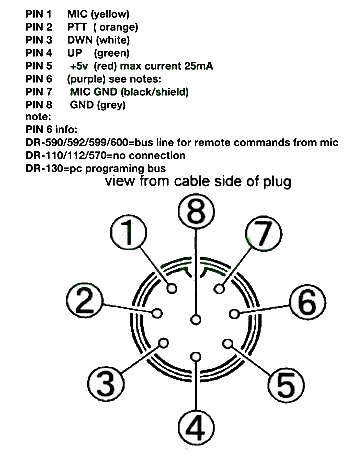

DX70-DX70T-DX77-DX701-DX707-DR110-DR112-DR119-DR135-DR-330 DR435-DR150E-DR150TE-DR235-DR-410-DR430-DR435-DR510-DR570
-DR590-DR592T-DR599T-DR600T-DR610-DR620-DR635-DR1200-DRM03-DRM06-ALR22H-ALD24T-ALR22T-ALR72T-



PIN1 MIC

PIN2 PTT

PIN3 DOWN

PIN4 UP

PIN5 + 5 VOLT ( Max current 25 mAh )( + 8 VOLT ALR-22/24 )

PIN6 AUDIO OUT (remote DR150TE-DR590-DR592-DR599-DR600) SEE ABOVE DIAGRAM REFERENCE

PIN7 MIC SCREEN/EARTH

PIN8 EARTH






ALINCO

DR140-DR605 (Modular Plug)



PIN1 UP

PIN2 GROUND

PIN3 MIC

PIN4 MIC GROUND

PIN5 PTT

PIN6 N/C

PIN7 DOWN

PIN8 + 5 VOLT






ALINCO

22T/E.24E/T



PIN1 MIC

PIN2 PTT

PIN3 DOWN

PIN4 UP

PIN5 + 8 VOLT

PIN6 N/C

PIN7 MIC EARTH

PIN8 GROUND






ALINCO

EMS-14 / ADONIS AM-508E / WATSON AM308 MICROPHONE COLOR CODING




YELLOW MIC

SCREEN EARTH (ground)

GREY PTT ( + VOLTAGE FEED ON ADONIS D80 )

BLUE PTT EARTH ON WATSON 308

PURPLE PTT EARTH (ground)

GREEN MIC UP

ORANGE COMMON (connect to ground)

WHITE MIC DOWN ( + VOLTS WATSON AM-308 )

BLACK MIC DOWN ON WATSON AM-308

RED + VOLT FEED( PTT ON ADONIS D80 AND WATSON AM-308 )




ALINCO

DMR610 DR-135 DR-435



PIN 1 MIC

PIN 2 PTT

PIN 3 DOWN

PIN 4 UP

PIN 5 +5 VOLTS

PIN 6 REMOTE CONTROL

PIN 7 SCREEN EARTH (ground)

PIN 8 GND







ALINCO

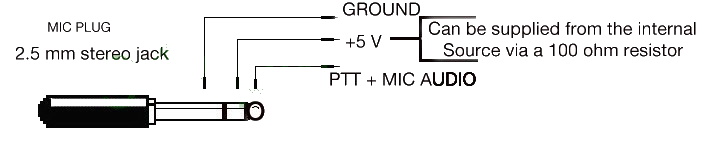

DJ-S11 DJ-41 DJ-180 DJ-190 DJ-191 DJ-491G DJ-596 DJ-G1 DJ-G5









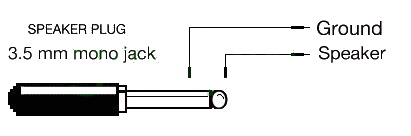

ALINCO

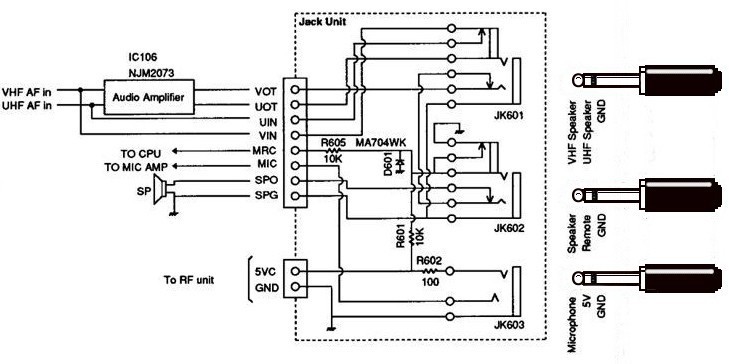

DJ-560 DJ-580









ALINCO HANDHELD

DJ-V17 DJ-V17E DJ-V17T DJ-V17TFH DJ-47E DJ-47T DJ-47T1 DJ-47T2

click for schematic










Microfoni ALINCO


EMS-5A MIC CONNECTIONS
EMS-14 MIC CONNECTIONS
EMS-42.MIC CONNECTIONS
EMS-45.MIC CONNECTIONS
EMS-46.MIC CONNECTIONS
EMS-47.MIC CONNECTIONS
EMS-51.MIC CONNECTIONS
EMS-52.MIC CONNECTIONS
EMS-53.MIC CONNECTIONS

EMS-54.MIC CONNECTIONS
EMS-55.MIC CONNECTIONS
EMS-54 / 55.MIC SCHEMATICS
EMS-56.MIC CONNECTIONS
EMS-56 MIC SCHEMATIC
EMS-57 MIC CONNECTIONS
EMS-57 MIC SCHEMATIC









ADONIS


ADONIS- AM-DX1 MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS AM-308 MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS AM-503G MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS AM-508e MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS AM-708 MICROPHONE INSTRUCTIONS AND SCHEMATICpdf
ADONIS AM-7500e MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS AM-308 / AM-508 / AM-608 / AM-708 / AM-7500E MICROPHONE PHOTO'S
ADONIS FX-6 MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS WX-2400 MICROPHONE INSTRUCTIONS AND SCHEMATIC pdf
ADONIS BOOM1 MICROPHONE CONNECTIONS pdf

ADONIS MICROPHONE INTERCONNECTING CABLE INFO

INFO TO CONNECT ADONIS AM-DX1 AM-308 AM-508 AM-708 AM-7500e TO YAESU FT-847 FT-920 FT-1000MP






ADONIS MICROPHONE CONVERTION LEADS FOR AM-708 ABOVE

ADONIS LEAD NUMBER D-88K AS-327 (Connections for Kenwood configuration)





SILVER PLUG END (tranceiver)     ORANGE PLUG END (connected to microphone)

PIN 1  YELLOW.     connected to   PIN 2.YELLOW (mic)

PIN 2  RED.            ..         PIN 3.RED (ptt)

PIN 3  WHITE.          ..         PIN 6.WHITE (down)

PIN 4  GREEN.          ..         PIN 5.GREEN (up)

PIN 5  GREY.           ..         PIN 8.GREY (+volts DC feed)

PIN 6  N/C.            ..         PIN 4.PURPLE (ptt ground)

PIN 7  SCREEN.         ..         PIN 1.SCREEN (mic ground)

PIN 8  ORANGE+PURPLE.  ..         PIN 7.ORANGE (up/down common ground)




ADONIS LEAD NUMBER D-80K AS-340
This is sold as a spare lead with only orange (mic end) plug fitted.





ORANGE PLUG END (connected to microphone)

PIN 2.YELLOW (mic)
PIN 3.RED (ptt)
PIN 6.WHITE (down)
PIN 5.GREEN (up)
PIN 8.GREY (+volts DC feed)
PIN 4.PURPLE (ptt ground)
PIN 1.SCREEN (mic ground)
PIN 7.ORANGE (up/down common ground)



COLOURS AND CONNECTIONS ON THE ORANGE (mic) PLUG ENDS OF LEADS ARE IDENTICAL





STANDARD ADONIS MICROPHONE COLOR CODING



YELLOW (mic)

RED (ptt)

WHITE (down)

GREEN (up)

GREY (+volts DC feed)

PURPLE (ptt ground)

SCREEN (mic ground)

ORANGE (up/down common ground)






ADI




ADI

AR-146 AR-147 AR-247 AR-446 AR-447

8 PIN ROUND PLUG.



PIN 1 MIC

PIN 2 PTT

PIN 3 DOWN

PIN 4 UP

PIN 5 + 8VOLTS (max 150 mAh)

PIN 6 RX AUDIO OUT

PIN 7 MIC SCREEN

PIN 8 GROUND







AEA

AEA DX-HANDY 6M,DX-HANDY 10M






ALBRECT


AE485 MIC SCHEMATIC

AE497 MIC SCHEMATIC

AE560 MIC SCHEMATIC










AKD/GAREX




AKD/GAREX 2001-4001-6001-7003

4 PIN PLUG



PIN 1 MIC

PIN 2 COMMON EARTH

PIN 3 AUDIO OUTPUT

PIN 4 PTT








ANYTONE




AnyTone

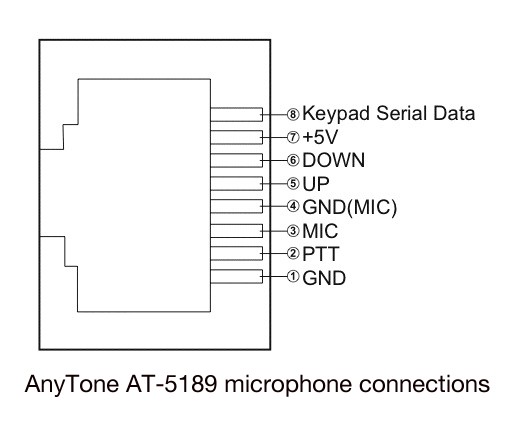

AT-5189










ASTATIC


ASTATIC 531 schematic

ASTATIC D104 schematic

ASTATIC D104-M6B D104-M6C schematic

ASTATIC MICROPHONE WIRING REFERENCE pdf










ATLAS


ATLAS TRANCEIVERS MODELS

TX110-180-210-215-350XL


ATLAS

VX5 VOX UNIT












AZDEN


PCS 5000-6000-7000-7200-7300-7600-7800-9600



PIN 1 MIC

PIN 2 MIC GROUND

PIN 3 TONE BURST (connect to pin 6)

PIN 4 DOWN

PIN 5 UP

PIN 6 COMMON GROUND

PIN 7 PTT

PIN 8 +13.8 VOLT


AZDEN-PCM-463 MICROPHONE INFO











BARRETT


550 COMMERCIAL HF



8 Pin Round

PIN 1 MIC LOW z HOT

PIN 2 RS232 TX DATA

PIN 3 RS232 RX DATA

PIN 4 RS232 GROUND

PIN 5 PTT

PIN 6 GROUND

PIN 7 MIC HIGH z HOT

PIN 8 SPEAKER


info VK2BOF










BAOFENG

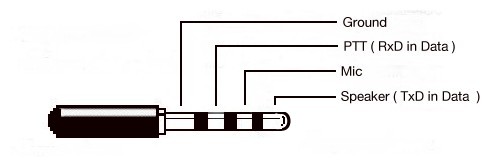

UV-3R BF-U3










CES MICROPHONES


CES-600L MICROPHONE pdf

CES-805 MICROPHONE pdf








COLLINS




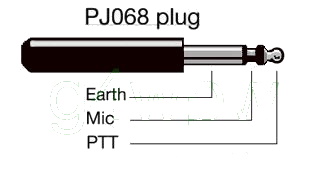

KMW-1 KWM-2 KWM-2A KWM-380 KWM-390, 312B-4, 312B-5, (S-LINE) 32S-1





COLLINS SM1/SM3 MICROPHONE INFO









COLLINS

32V KW-1 KWS-1



PIN 1 MIC AUDIO.
PIN 2 PTT.
CASE COMMON GROUND/EARTH









COLLINS 32RA

PIN 1 COMMON GROUND/EARTH
PIN 2 PTT
PIN 3 MIC AUDIO










COMTRONIX

FM-80



PIN1 MIC

PIN2 PTT

PIN3 No connection

PIN4 SCREEN AND EARTH







DRAKE




DRAKE TR-5 TR-7 TR-7A

4 PIN PLUG





PIN 1 MIC

PIN 2 PTT

PIN 3/4 EARTH/GROUND









DRAKE TR-22

3 PIN LOCKING RING TYPE PLUG





PIN 1 MIC

PIN 2 PTT

PIN 3 EARTH







DRAKE TR-72

4 PIN PLUG.





PIN 1 MIC

PIN 2 PTT

PIN 3/4 EARTH/GROUND







DRAKE TR-270

4 PIN PLUG.





PIN 1 MIC

PIN 2 PTT

PIN 3 COMMON EARTH

PIN 4 + 10 VOLT







DRAKE

TR-3 T4 TR-4 TR-4B TR-4XB TR-4XC TR-4C T-4XC T-4XB TR-6

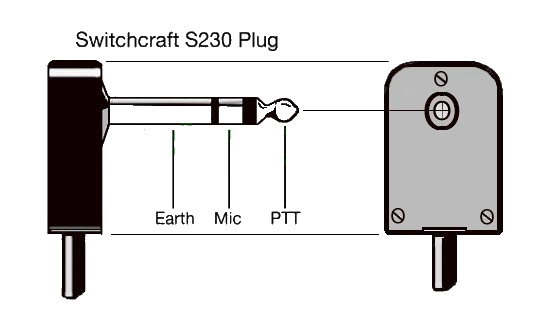

(S230 Mic Plug)






ELECRAFT K3



PIN 1 MIC

PIN 2 PTT

PIN 3 DOWN

PIN 4 UP

PIN 5 FUNCTION

PIN 6 8 VOLT

PIN 7 GROUND

PIN 8 GROUND.






FDK


FDK MULTI-11 MULTI-UII MULTI-II MULTI-700E MULTI-700EX MULTI-800 MULTI-2000 MULTI-2700

4 PIN ROUND PLUG





PIN 1/4 GROUND / MIC SREEN

PIN 2 PTT

PIN 3 MIC






FDK

MULTI-750A MULTI-750E MULTI-725

6 PIN ROUND PLUG



PIN 1 MIC

PIN 2 PTT

PIN 3 UP

PIN 4 + 5V

PIN 5 GROUND

PIN 6 DOWN

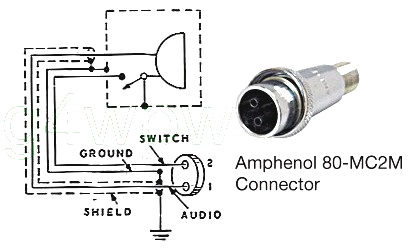

HALLICRAFTER HT-46






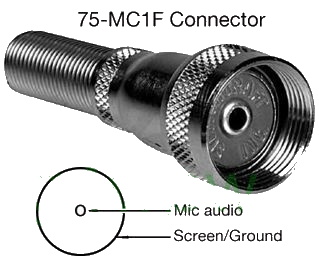

HALLICRAFTER

HT-32 HT-36 HT-44 SR-42 SR-42A SR-46 SR-150 SR-160 SR-400 SR-400A SR-500 SR-540 SR-2000






HALLICRAFTER

HT-40 HT-37








HEATHKIT


Heathkit SB-100 / SB-104 mic Connection

Heathkit HW-12 / HW-22 mic Connection

Heathkit HW-17 mic Connection






HEIL


HM-10 DUAL, GM-4,GM-5,GMV. HANDIMIC-HM-4, HM-5, HM-iC, HM-PRO. CLASSIC.

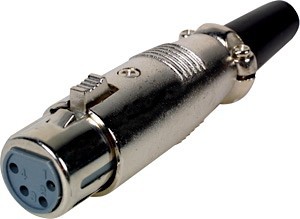

4 PIN XLR PLUG






PIN 1 GROUND/SHIELD

PIN 2 MIC

PIN 3/4 PTT




PRO-20, PRO-30, PR0-40, CLASSIC PRO, HERITAGE
3 PIN XLR PLUG



UNBALANCED OUTPUT



PIN 1 SHIELD

PIN 2 + MIC

PIN 3 - MIC (connected to pin 1)





BALANCED OUTPUT



PIN 1 SHIELD

PIN 2 + MIC OUTPUT

PIN 3 - MIC GROUND




HEIL TRAVELER HEADSET



PIN 1 MIC

PIN 2 +8 VOLT

PIN 3 U/DOWN

PIN 4 SQUELCH

PIN 5 PTT

PIN 6 EARTH PTT

PIN 7 MIC EARTH

PIN 8 AUDIO OUTPUT




THE HEIL CONNECTION SYSTEM

MORE INFORMATION FROM THE HEIL WEBSITE






JCD-201M DESK MIC



PIN1 (E) BRAID

PIN2 (M) (MIC) BROWN

PIN3 (P) (PTT) WHITE

PIN4 (G) (PTT GROUND) GREEN

PIN5 (U) (UP) BLACK

PIN6 (D) (DOWN) YELLOW

PIN7 (C) (UP/DOWN EARTH) BLUE

PIN8 (B) (+5 - +9VOLTS DC) RED

JCD-201M PHOTO






JRC


JST-100 JST-100D JST-100S JST-110 JST-135 JST-145 JST-245



PIN1 MIC UP

PIN2 NC

PIN3 MIC DOWN

PIN4 + 9 VOLTS

PIN5 PTT EARTH

PIN6 PTT

PIN7 MIC EARTH

PIN8 MIC




NVT-56 / 57 / 58 MICROPHONE INFO






KACHINA


KACHINA 505DSP

8 PIN ROUND PLUG.



PIN 1 GROUND

PIN 2 MIC

PIN 3 PTT

PIN 4 SPEAKER

PIN 5 N/C

PIN 6 N/C

PIN 7 N/C

PIN 8 N/C



( info AE5K )






KDK


KDK FM-2016 FM-2025

4 PIN ROUND PLUG



PIN 1 PTT GROUND

PIN 2 PTT

PIN 3 MIC SCREEN

PIN 4 MIC







KDK FM-2030 FM-2033

6 PIN ROUND PLUG.



PIN 1 UP/DOWN GROUND

PIN 2 UP

PIN 3 DOWN

PIN 4 PTT

PIN 5 MIC

PIN 6 MIC SREEN/GROUND






KDK DM-TT1 MICROPHONE

KDK TM-2 MICROPHONE

KDK DM-100 MICROPHONE






KW




KW TRANSMITTERS /TRANCEIVERS KW-1 KW-2000 KW-2000A KW-2000B KW-VESPA KW-VICEROY






MFJ




MFJ-8621 DATA CONNECTIONS, must be configured for 1200 baud operation





Note: This radio has un-squelched output, use "software DCD"

PIN1 AFSK In (yellow)

PIN2 GROUND/EARTH (black)

PIN3 PTT (red)

PIN4 AFSK Out (green)




MFJ-297 MFJ-299 MICROPHONES


PIN1 MIC GROUND

PIN2 MIC

PIN3 PTT

PIN4 PTT GROUND

PIN5 UP

PIN6 DOWN

PIN7 COMMON UP/DOWN

PIN8 DC VOLT




MFJ-299 INSTRUCTION MANUAL WITH (ICOM,YAESU,KENWOOD,CONNECTION INFO


MFJ-434 VOICE KEYER INFO pdf

DOWNLOAD MFJ PRODUCT MANUALS FREE






MOTOROLA

CM140-160-200-300-340-360
EM200-400 GM300-338-140-160-398-640-660-1280-3188-3688
CDM1250-MCX760-PRO3100-5100-7100
M10-120-130-208-216-1255-1255LS-MaxTrac PM400-SM120-SM50

ALSO MICROPHONE-RMN4025



PIN1 N/C

PIN2 N/C

PIN3 GROUND (blue)

PIN4 GROUND (black)

PIN5 MIC (red)

PIN6 PTT (green)

PIN7 N/C (yellow)

PIN8 AUDIO (blue)


HMN-1035 MIC SCHEMATIC pdf






NAVICO

AMR-1000/S



PIN1 MIC GROUND 0 VOLT

PIN2 PHONES

PIN3 CRADLE

PIN4 PTT

PIN5 MIC

PIN6 +12 VOLT

PIN7 DOWN

PIN8 UP







NEC


NEC CQ110E

4 PIN ROUND PLUG



PIN 1+4 (INTERCONNECTED) GROUND / MIC SREEN

PIN 2 PTT

PIN 3 MIC







RADIO SHACK

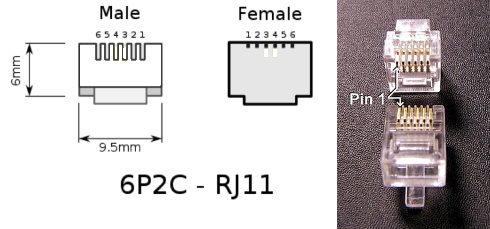

RADIO SHACK (Modular Connector)



 Models HTX-212.HTX-242


PIN1 Tone

PIN2 GROUND/EARTH (black)

PIN3 Ck

PIN4 Con

PIN5 Mic (yellow)

PIN6 PTT (red)

PIN7 5 VOLTS

PIN8 Data


Alternative colour coding for the above models

PIN1 Tone (yellow)

PIN2 GROUND/EARTH (screen)

PIN3 Ck (black)

PIN4 Con (green)

PIN5 Mic (white)

PIN6 PTT (orange)

PIN7 5 VOLTS (brown)

PIN8 Data (red)





RADIO SHACK- HTX-100 MICROPHONE INFO

RADIO SHACK- HTX-242 MICROPHONE SCHEMATIC

RADIO SHACK- HTX-252 MICROPHONE INFO pdf






SGC


SG-2020



PIN 1 MIC

PIN 2 PTT

PIN 3 OPT 1

PIN 4 OPT 2

PIN 5 N/C

PIN 6 RX AUDIO OUT

PIN 7 MIC GROUND

PIN 8 GROUND







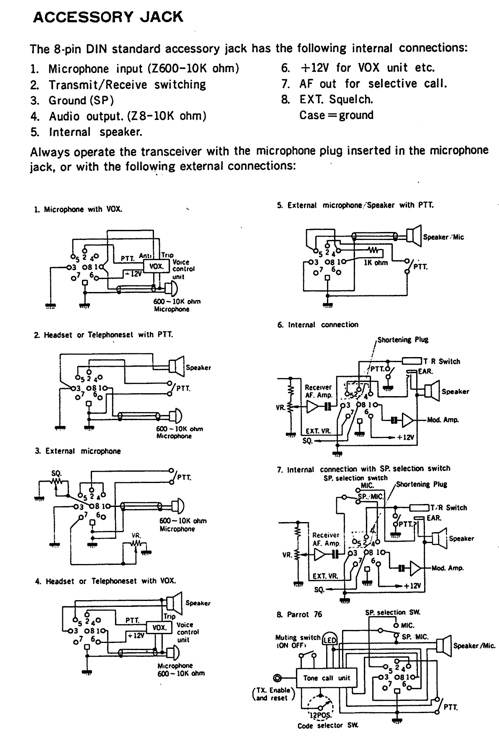

SOMMERKAMP


TS-280FM TS-480FM





SOMERKAMP

FT-307CBM (see YAESU FT-107 )

FT-277ZD ( see YAESU FT-101ZD )

FT-767DX ( see YAESU FT-707 )

FT-7B ( see YAESU FT-7 )










STANDARD


C58-C78-C88-C1100-C4100-C5800-C7800-C8800-C8900



PIN 1 MIC

PIN 2 PTT

PIN 3 SPEAKER

PIN 4 COMMON (NOTE:+8 VOLT ON THIS CONNECTION)

PIN 5 DOWN

PIN 6 UP

PIN 7 GROUND

Note 0.001uF capacitor is connected between pin 1 and pin 7





STANDARD
C5000-C5200-C6000-C6000S



PIN 1 MIC

PIN 2 PTT

PIN 3 SPEAKER

PIN 4 COMMON

PIN 5 UP

PIN 6 DOWN

PIN 7 CALL

PIN 8 GROUND





C5608



PIN 1 MIC

PIN 2 PTT

PIN 3 SPEAKER

PIN 4 + 7.5 VOLT

PIN 5,6,7 MICROPROCESSOR INTERFACE PINS

PIN 8 GROUND





STANDARD
C5900 (8 pin modular type plug)



PIN 1

PIN 2

PIN 3

PIN 4 PTT

PIN 5 GROUND

PIN 6 MIC

PIN 7

PIN 8








SWAN

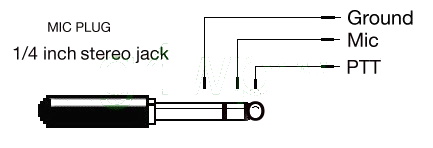

SWAN 100MX-120-100SS-140-175-200A-240-250C-350-400-500-500C-600T-700 SERIES-750.
ASTRO-102BX-103.CYGNET-270B-300B






SHURE


Shure 444 schematic

Shure 522 schematic

Shure 527B schematic

Shure 550L schematic


MORE SHURE MICROPHONE INFO






TEN TEC




ORION / ARGONAUT / JUPITER.info and Schematic


TEN-TEC ORION - ARGONAUT - JUPITER - OMNI VI - PARAGON - DELTA II - CORSAIR - SCOUT-555
4 PIN PLUG.





PIN1 MIC +

PIN2 MIC -

PIN3 PTT

PIN4 +9 VOLT

SHELL/CHASSIS=GROUND






TEN-TEC ORION II / OMNI VII
8 PIN PLUG



PIN1 N/C

PIN2 +10 VOLT

PIN3 N/C

PIN4 N/C

PIN5 GROUND

PIN6 PTT

PIN7 MIC EARTH

PIN8 MIC





OMNI-VII microphone info and Schematic

ORION-II microphone info and Schematic

TEN-TEC 705 MICROPHONE pdf




TURNER


TURNER- EXPANDER 500 schematic

TURNER- EXPANDER 500 AMPLIFIER schematic

TURNER- M+2U - JM+2U schematic

TURNER- +3 AMPLIFIER.schematic pdf

TURNER- SUPER SIDEKICK and +3 schematic

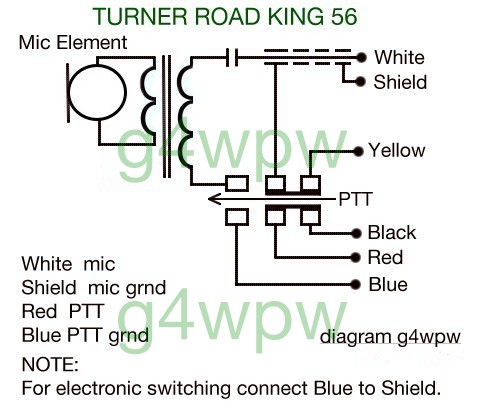

TURNER- ROAD KING 56 schematic

TURNER- RK60 / RK60J / PLUS+2 / M+3.schematic






VIKING (E.F.Johnson Co)


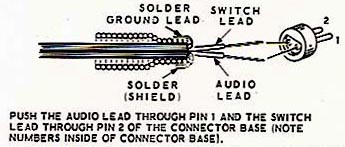

VIKING-II





VIKING RANGER, RANGER II / VALIANT VALIANT II, VIKING 500, INVADER 2000, VIKING PACEMAKER, INVADER




Pin 1 MIC

Pin 2 PTT

PLUG CASE EARTH


VIKING MESSENGER
40-50-80-4170-4175
VIKING 230-260-270-430



Pin 1 MIC

Pin 2 PTT/COMMON GROUND

Pin 3 RECEIVE

Pin 4 N/C

Pin 5 PTT

Pin 6 MIC SHIELD




VIKING MESSENGER
124



Pin 1 MIC

Pin 2 PTT/COMON GROUND

Pin 3 PTT

Pin 4 N/C




VIKING MESSENGER
130-130A-132



Pin 1 MIC

Pin 2 N/C

Pin 3 PTT GROUND

Pin 4 MIC GROUND

Pin 5 SHIELD /MIC GROUND




VIKING MESSENGER
250



Pin 1 MIC

Pin 2 PTT/COMON GROUND

Pin 3 RECEIVE

Pin 4 N/C

Pin 5 PTT

CASE SHIELD




VIKING MESSENGER
4230



Pin 1 PTT

Pin 2 N/C

Pin 3 PTT

Pin 4 MIC

Pin 5 N/C

CASE SHIELD/COMMON GROUND




VIKING MESSENGER
4250



Pin 1 N/C

Pin 2 MIC

Pin 3 PTT

Pin 4 PPT/COMON GROUND

Pin 5 N/C

Pin 6 MIC SHIELD




VIKING MESSENGER
4730



Pin 1 PTT

Pin 2 PTT

CASE SHIELD/COMMON GROUND




VIKING MESSENGER4740
VIKING 352-352D





PIN 1 MIC

PIN 2 PTT

PIN 3 N/C

PIN 4 N/C

PIN 5 PTT/GROUND

CASE SHIELD MIC GROUND




VIKING MOBILE







WATSON


Watson WM-308 (see Adonis AM-308 above)






Questo sito è copyright © FLQ ELETTRONICA - Partita IVA IT01728980598

Tutti i prezzi sono da intendersi IVA inclusa
