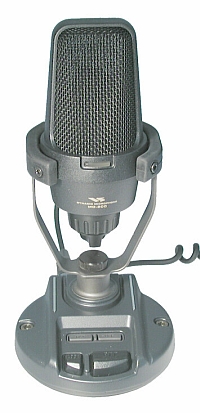

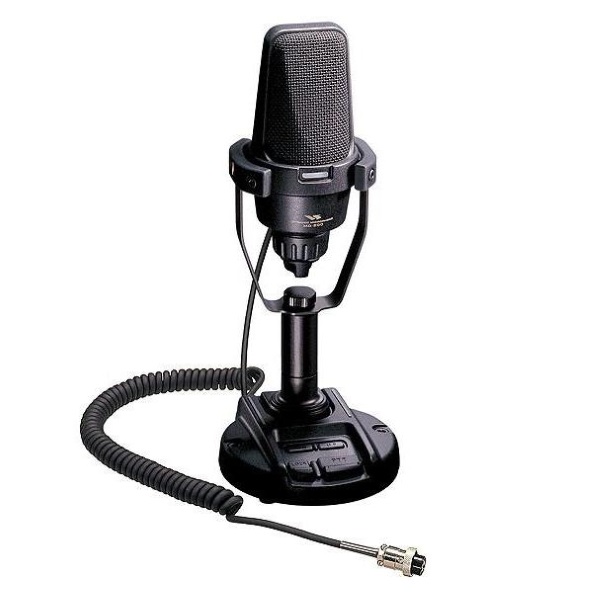

The Yaesu MD-200A8X ultra-fidelity desktop mic was unveiled at the 2001 Dayton Hamvention. This stylish, high-quality desk microphone is designed for the latest generation of Yaesu HF transceivers. The MD-200A8X employs a studio-quality Polyethylene Teraphthalate Film Dynamic element, optimized for high fidelity SSB operation, allowing faithful reproduction of the operator´s voice during operation with negligible distortion.

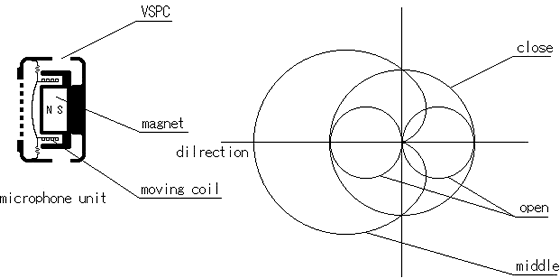

Yaesu´s exclusive VSPC (Variable Side Pressure Control) allows the operator to adjust the frequency response of the microphone, from a totally flat response to a high-articulation response with moderate peaking about 2000 Hz. The VSPC technique provides this response control without the distortion and reduced signal-to-noise ratio that can accompany active "equalizer" circuits.

The MD-200A8X also includes provision for the incorporation of a user-supplied Dynamic, Magnetic or Crystal microphone element, allowing A-B selection of the supplied dynamic element and the custom element. A slide switch on the base of the mic allows easy switching. This mic also has up-down scanning and transmit LED that are supported by most Yaesu radios.

The MD-200A8X is constructed using a heavy-duty aluminum die-cast base and support frame, with a rubber shock absorber for the mic element housing to dampen low frequency vibrations. The mic cable terminates to an Yaesu 8 pin mic plug.

Tipo Capsula Microfonica: Dinamica
Risposta in Frequenza: 30 - 17000 Hz
Sensibilità: –62 dB (1 kHz, 0 dB = 1 V/1 pa)
Impedenza: 600 Ohm
Dimensioni (WHD): 120 x 290.5 x 124.5 mm.
Peso: 1 kg.
