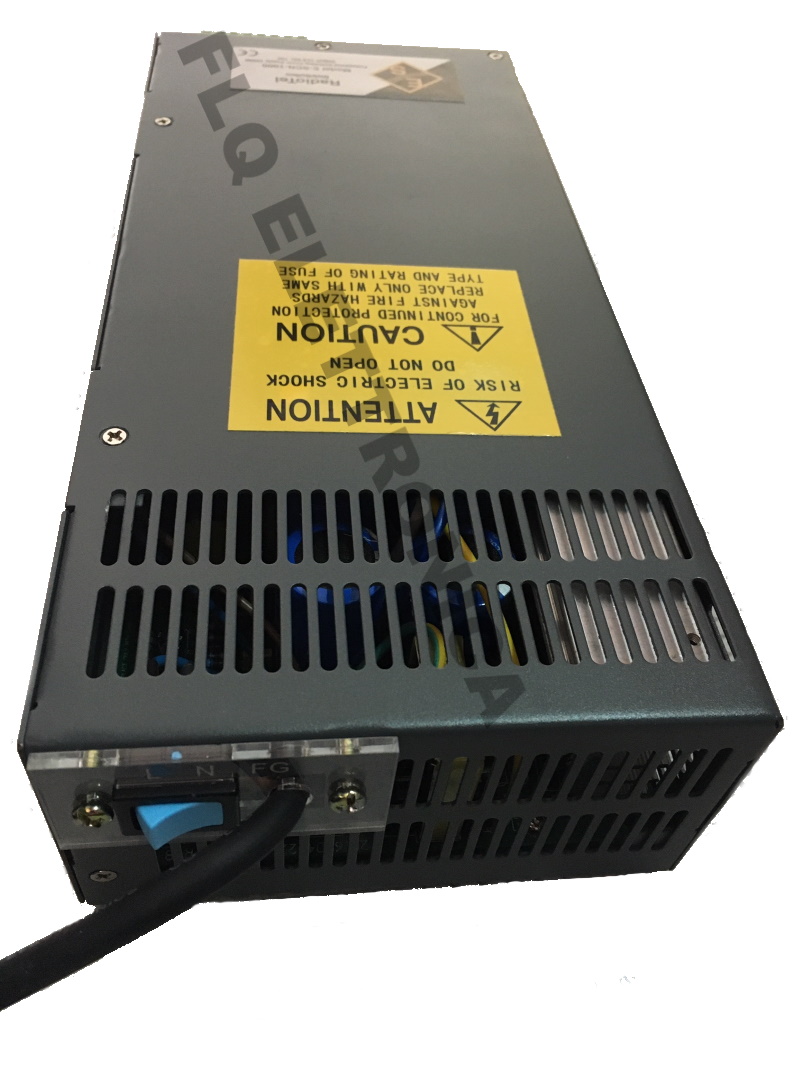

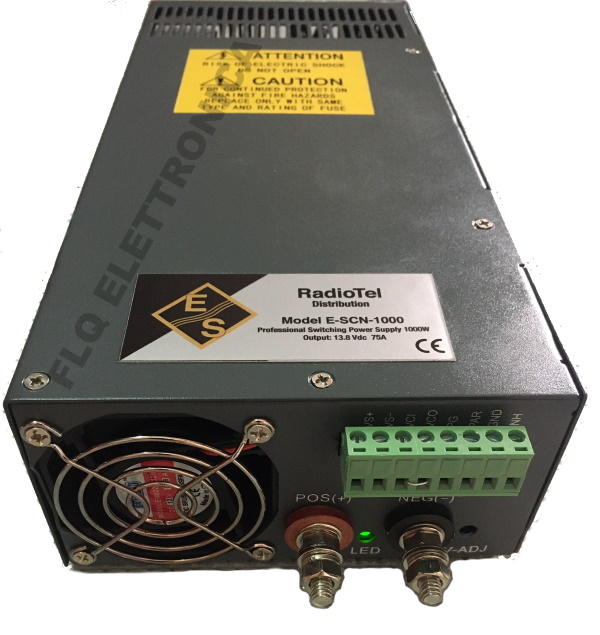

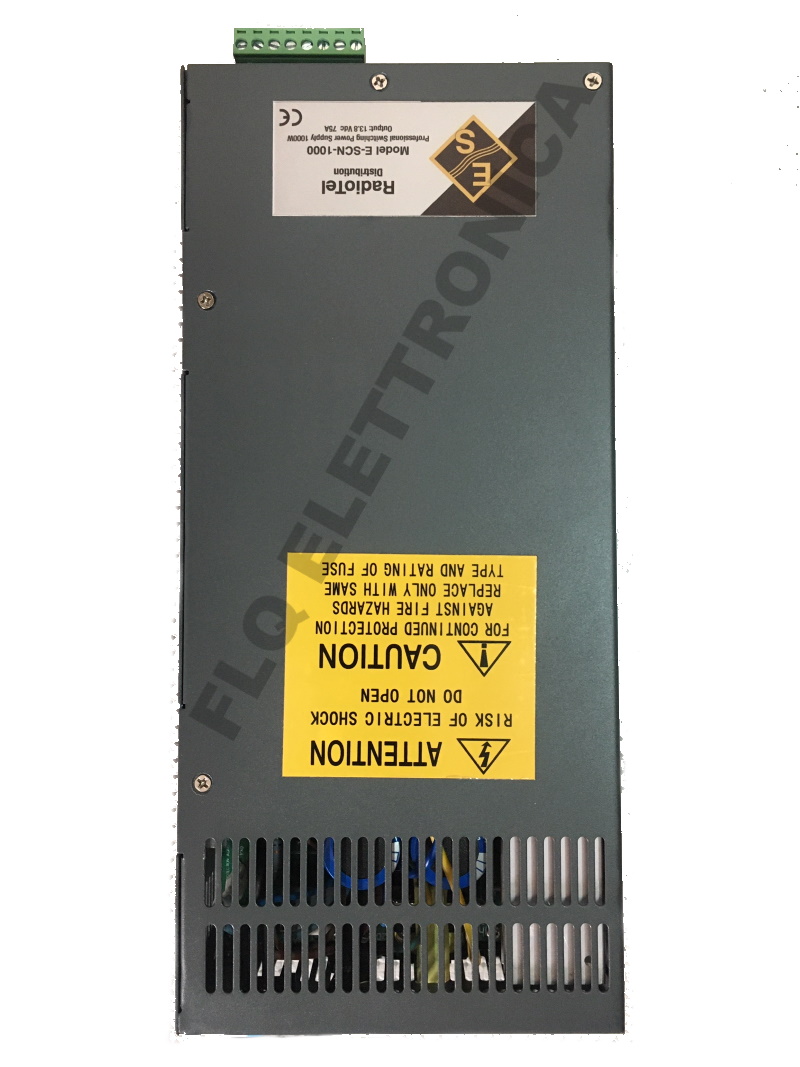

   SCN-1000-25

 Prezzo : € 220,00  Tasse incl.
 Quantità:

Disponibilità
Buona

Descrizione:

Alimentatore switching 25 Volt con ventola

40 Amp - 1000 Watt, ultra compatto, autoprotetto



  • AC input range selected by switch
  • ON/OFF switch
  • 2mt flexible cable with shuko
  • Assembled with high-quality components
  • Very low noise
  • Equipped with high-efficiency filters and EMC circuit
  • Protections: Short circuit / Overload current and voltage / Over temp.
  • High reliability/ Low ripple and low noise
  • Built-in remote sense function
  • Built-in remote ON-OFF control
  • Built-in parallel operation function
  • Adjustable output voltage by external control 1-5V  from (20~100%)
  • Adjustable output voltage by internal trimmer  (24.5-29.9 Vdc)
  • Forced air cooling by built-in DC fan



IMPORTANTE

Per ragioni di sicurezza e per ridurre i sisturbi RFI consigliamo di collegare il dispositivo ad una presa di terra



Model

E-SCN-1000





DC Output Voltage

25 Volt

Intput Voltage Error

1%

Rated Output Current

40 Ampere

Output Current Range

0-40 Ampere

Ripple and Noise

240 mVp-p

Voltage Adjustment Range

 5.0% typical adjustment by potentiometer

20~100% adjustment by 1~5VDC external control

Inlet Stability

0.5%

Tolerance Voltage

1%

DC Output Power

1000 Watt

Efficiency

84,00%

AC Input Voltage range

90 ~ 130 VAC / 180 ~ 260 VAC selected by switch, 260 ~ 370 VDC

Input Current

Fuse 10A/230 VAC - Fuse 15A/115 VAC

AC Inrush Current

Cold-Start Current: 60A / 23 0VAC

Leakage Current

3.5mA/240 VAC

Overload Protection

110~135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover

Over Voltage Protection

110 ~ 135% follow to output set up point, shut down o/p voltage, re-power on to recover

High Temperature

>100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover

Temperature Coefficient

0.04% /℃ (0~50℃)

Start, Rise, Hold Time

800ms, 50ms, 16ms at full load

Vibration

10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Withstand Voltage

I/P-O/P, I/P-FG:1500VAC

Isolation Resistance

I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH

Working Temperature, Humidity

-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH

Storage Temperature, Humidity

20℃~+85℃, 10%~95%RH

MTBF

120Khrs min. MIL-HDBK-217F (25℃ )

Dimension

291 x 132 x 68 mm

Weight

2.65 kg

Special functions

DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)

Safety Standards

CE

EMC Standards

Meet FCC Part 15J Conduction class A
