| Norm |
AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory) |
| Mode |
FM ( Wide/Narrow ) |
| Frequency range |
RX/TX : 144-146 MHz / 430-440 MHz |
| Power |
LOW : 5W / MIDDLE : 15W / HIGHT : 25W VHF -- 20W UHF(large cooling box) |
| Input voltage |
13,8V DC |
| Memories |
200 channels |
| Channel spacing |
12.5 / 20 / 25 KHz |
| Step of increment |
2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz |
| Working |
UU / UV / VU / VV |
| RELAY MOD / OFFSET |
Yes : allows to enter a relay with two different frequency |
| TONE BURST |
Yes : 1000Hz / 1450Hz / 1750Hz / 2100Hz |
| CTCSS / DCS (encoder/decoder) |
52 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone |
| DTMF (encoder) |
Yes : tones selected to activate repeater, internet gateway and other items |
| DOUBLE WATCH function |
Yes |
| TOT function |
Yes : time out timer |
| CTCSS / DCS SCAN function |
Yes |
| SCAN function |
Yes : automatic search of busy channels |
| REVERSE function |
Yes : the current channel RX frequency will be switched to TX frequency |
| TALK AROUND function |
Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear |
| Various functions |
Possibility to lock the start by code (default code 123456) |
| Bonus |
Backlit keys + Jack plug for external loud speaker + 6 functions keys PF1 to PF6 with 3 functions each + menu order can be personalized |

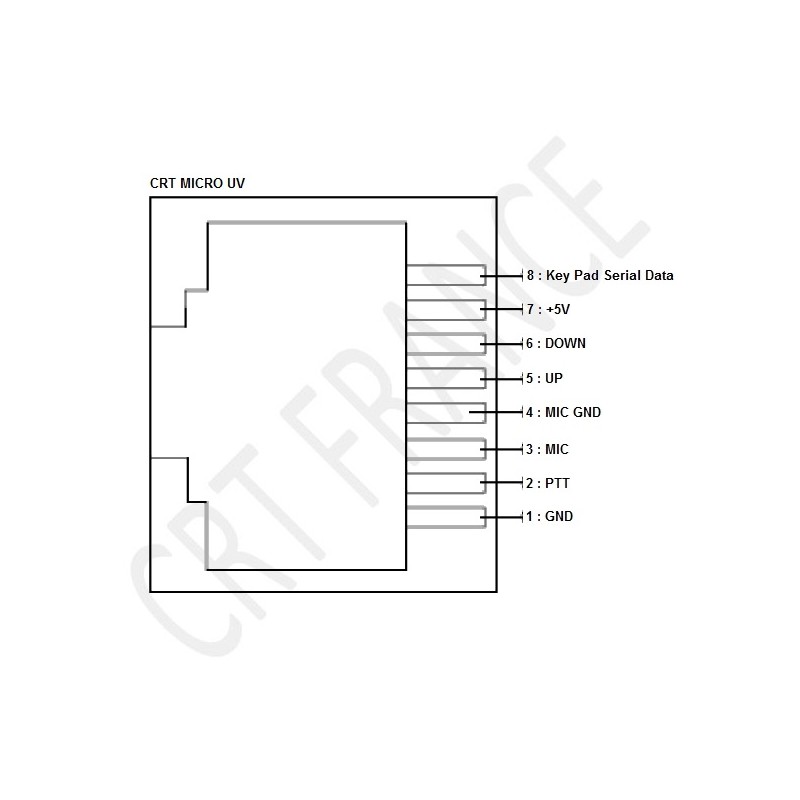

| Mike |
With speaker incorpored and programmable keys |
| Display |
Large color multifunction TFT display adjustable to 180 ° |
| Level display |
RX signal + TX power + channel number or frequency + various functions ... |
| Options |
Programming cable + software |
| Programmable by software |
Yes |
| Includ |
Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English |
| Size |
122 (l) x 165 (L) x 35 (H) mm |
| Weight |
480 gr |
| Guaranty |
2 years |
