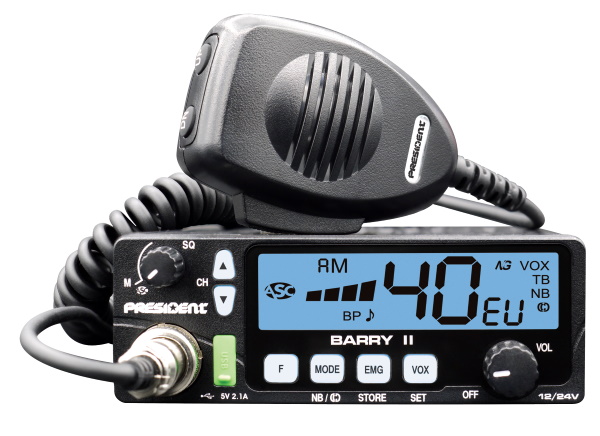

Ricetrasmettitore CB 27 Mhz funzionante sia a 12 che 24 Volt, display retroilluminabile in 7 colori
|
|
|
|
President BARRY II
- AM/FM
- Alimentabile sia a 12 che 24 Volt

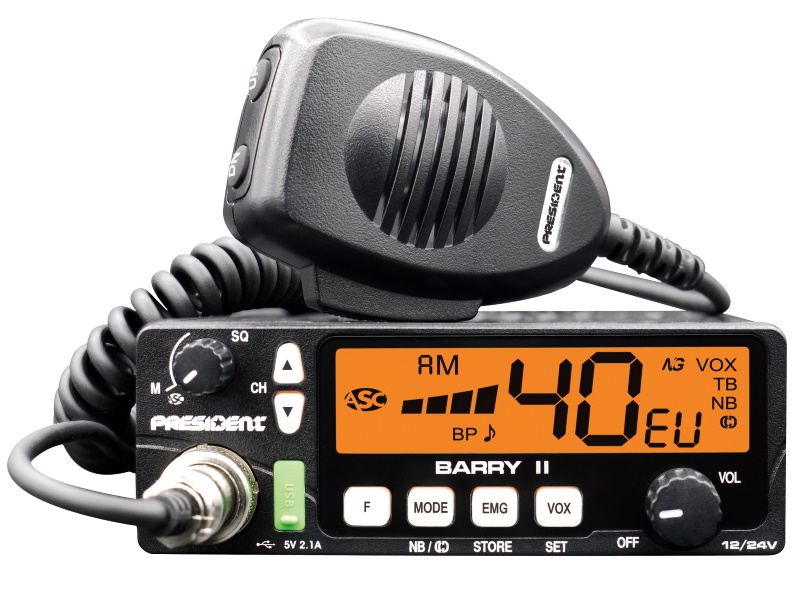

- Display retroilluminato con 7 colori a scelta
- Filtri ricezione ANL e NB
- Roger Beep
- VOX incorporato
- Squelch automatico e manuale
- S-meter
- Presa USB da 2.1 Ampere
- Presa microfonica a 6 pin in metallo
**=versione export 6/8 Watt AM e 20 Watt FM, 120 canali + alfa
Specifications
| Supply |
: |
13.2 V / 24 V |
| Number of channels |
: |
40 ** |
| AM |
: |
|
| FM |
: |
|
| Channel selector |
: |
up / down |
| Volume |
: |
Volume adjustment and ON/OFF |
| Squelch |
: |
Manual squelch |
| ASC |
: |
|
| Display |
: |
LCD multifunction |
| S-meter |
: |
Digital |
| Public address |
: |
|
| Talkback |
: |
|
| Vox |
: |
|
| Filter ANL |
: |
|
| Filter NB |
: |
|
| F / Menu function key |
: |
|
| Key Beep |
: |
|
| Roger beep |
: |
|
| Preset channel |
: |
EMG (customizable) |
| Microphone plug |
: |
front (6 pins) |
| External Vox microphone jack |
: |
|
| External loudspeaker jack |
: |
|
| Size |
: |
125 (W) x 180 (D) x 45 (H) |
| Weight |
: |
0.9 kg |
Transmission
| Frequency allowance |
+/- 200 Hz |
| Carrier power |
4 W AM / 4 W FM ** |
| Transmission interference |
inferior to 4 nW (- 54 dBm) |
| Audio response |
300 Hz to 3 KHz |
| Emitted power in the adj. channel |
inferior a 20 μW |
| Microphone sensitivity |
7 mV |
| Drain |
1,7 A at 13,2 V / 0,85 A at 26,4 V |
| Modulated signal distortion |
2 % |
Reception
| Maxi. sensitivity at 20 dB sinad |
: |
0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM |
| Frequency response |
: |
300 Hz to 3 kHz |
| Adjacent channel selectivity |
: |
60 dB |
| Maximum audio power |
: |
2.5 W |
| Squelch sensitivity |
: |
mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm |
| Frequency image rejection rate |
: |
60 dB |
| Intermediate frequency rej. rate |
: |
70 dB |
| Drain |
: |
160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V) |
|
