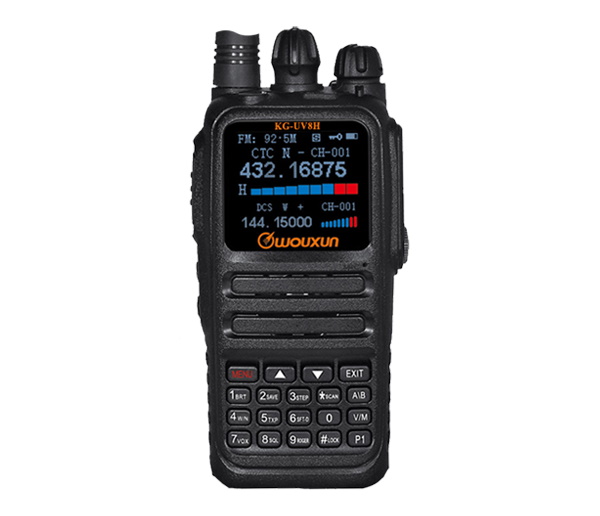

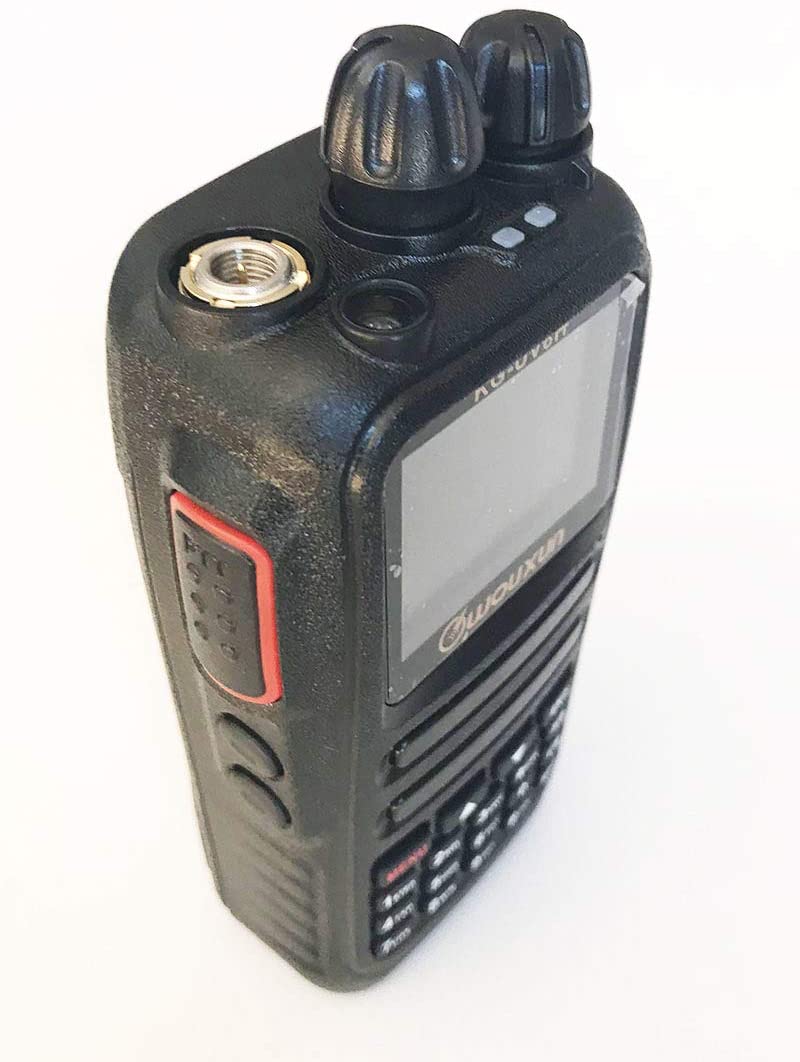

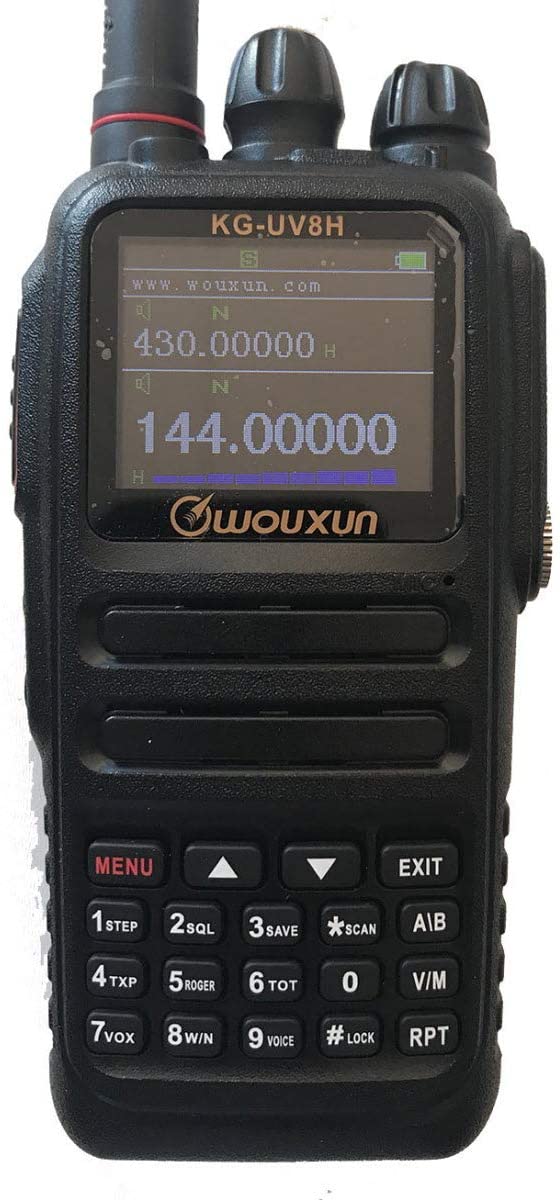

Ricetrasmettitore bibanda 10 Watt, VHF/UHF FULL duplex, impermeabile IP66, TRANSPONDER, SCRAMBLER
|
|
|
|
Compatto e maneggevole con display a colori, certificato impermeabile IP66 con ben 10 Watt di potenza, autonomia assicurata da una batteria al litio da 3200 m/Ah ! Display a colori, funzione FULL DUPLEX, CROSS BAND TRASPONDER, SCRAMBLER….
- Memory Channels 999
- QT/DQT Encoding / Decoding , QT / DQT Scan
- VOX and SOS Funcion
- Multi Definition for Sidekeys
- Incoming Message Display Caller ID display
- DTMF Encoding and Decoding
- All Calls , Group Calls And Selective Calls
- Dual Display ,Two Independent Operation System
- Large Color Screen
- Duplex Work Mode and Dual Receiving
- Cross Band Repeater
- Power on Message Editable
- Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
- Chinese and English Voice Guide
- Chinese and English Screen Display
- Bright Flashlight illumination
- Reverse Frequency
- Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
- Stopwatch
- Remote Alarm
- Priority Scan Function
- Voice Encryption and Non-Standard CTCSS/DCS
- Voice Compander
| Intergration |
| Frequency Range |
Suitable for Different Countries or Areas
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-148MHz & 420-520MHz
|
| Step |
5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50Ω |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
