President George II
ricetramettitore CB 27 Mhz omologato SSB
versione export 24.715 - 30.105 Mhz, potenza 10 Watt AM / 35 Watt FM SSB
- 40 channels AM / FM / LSB / USB
- Channel selector rotary
- VFO mode (from 26.965 MHz to 27.405 MHz)**
- RF Power
- Manual squelch
- ASC
- Display LCD multifunction
- Frequencies display
- S-meter Digital
- Public address
- Talkback
- Vox
- Filter ANL
- Filter NB
- Filter HI-CUT
- NRC
- RF Gain
- Mike-Gain
- Clarifier
- Scan
- Memory 4
- Dimmer
- Key Beep
- Roger beep
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- CTCSS 38 tones
- DCS 104 codes
- 12 V

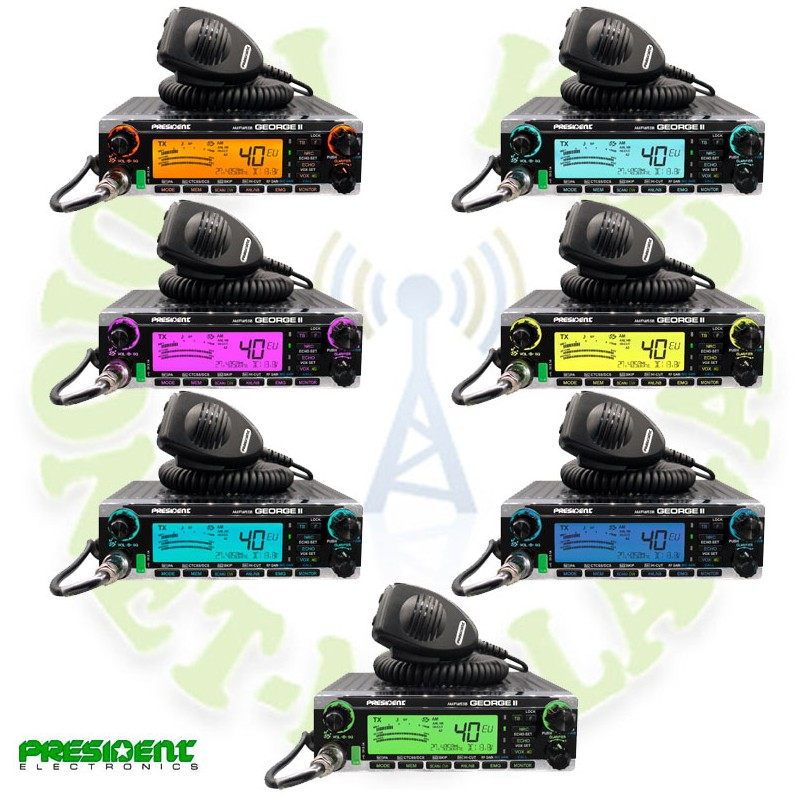

Back light color:
General
| Number of channels |
: |
40 |
| Modulation modes |
: |
AM/FM/USB/LSB |
| Frequency ranges |
: |
from 26.965 MHz to 27.405 MHz** |
| CTCSS |
: |
38 tones |
| DCS |
: |
104 codes |
| Antenna impedance |
: |
50 ohms |
| Power supply |
: |
12 V |

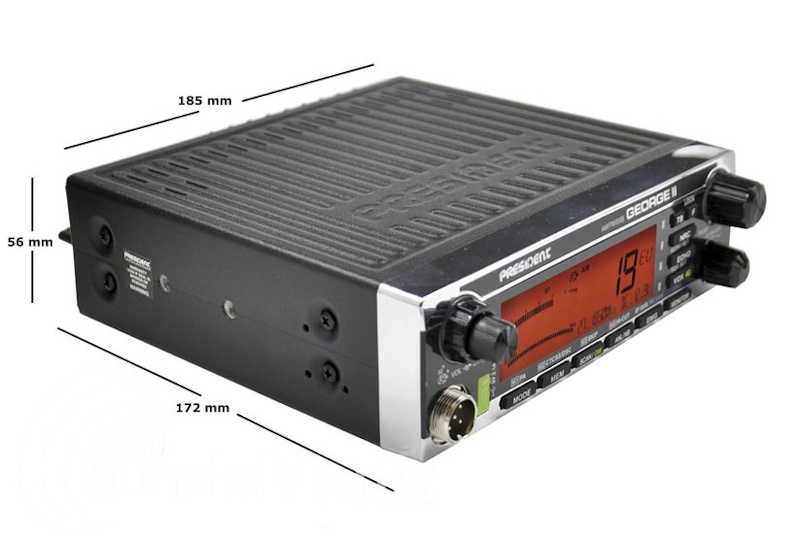

| Size |
: |
185 (W) x 172 (D) x 56 (H) mm |
| Weight |
: |
1.190 kg |
| Accessories supplied |
: |
power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws |
Transmission
| Frequency allowance |
: |
+/- 200 Hz |
| Carrier power |
: |
4 W AM / 4 W FM / 12 W PEP USB LSB** |
| Transmission interference |
: |
less than 4 nW (-54 dBm) |
| Audio response |
: |
300 Hz to 3 kHz AM/FM/USB/LSB |
| Emitted power in the adj. channel |
: |
less than 20 μW |
| Microphone sensitivity |
: |
3.0 mV |
| Drain |
: |
< 5 A max. with modulation (13.2 V) |
| Modulated signal distortion |
: |
2 % |
versione export 24.715 - 30.105 Mhz, potenza 10 Watt AM / 35 Watt FM SSB
Reception
| Maxi. sensitivity at 20 dB sinad |
: |
0.5 μV -113 dBm (AM)
0.35 μV -116 dBm (FM)
0.28 µV -118 dBm (USB LSB) |
| Frequency response |
: |
300 Hz to 3 kHz AM/FM |
| Adjacent channel selectivity |
: |
60 dB |
| Maximum audio power |
: |
3 W |
| Squelch sensitivity |
: |
minimum : 0.2 μV - 120 dBm
maximum : 1 mV - 47 dBm |
| Frequency image rejection rate |
: |
60 dB |
| Intermediate frequency rej. rate |
: |
70 dB |
| Drain |
: |
200 ~ 600 mA max (13.2 V) |
CTCSS Tone List
| N° |
Freq. (Hz) |
N° |
Freq. (Hz) |
N° |
Freq. (Hz) |
| 00 - oF |
OFF |
13 |
103.5 |
26 |
162.2 |
| 1 |
67.0 |
14 |
107.2 |
27 |
167.9 |
| 2 |
71.9 |
15 |
110.9 |
28 |
173.8 |
| 3 |
74.4 |
16 |
114.8 |
29 |
179.9 |
| 4 |
77.0 |
17 |
118.8 |
30 |
186.2 |
| 5 |
79.7 |
18 |
123.0 |
31 |
192.8 |
| 6 |
82.5 |
19 |
127.3 |
32 |
203.5 |
| 7 |
85.4 |
20 |
131.8 |
33 |
210.7 |
| 8 |
88.5 |
21 |
136.5 |
34 |
218.1 |
| 9 |
91.5 |
22 |
141.3 |
35 |
225.7 |
| 10 |
94.8 |
23 |
146.2 |
36 |
233.6 |
| 11 |
97.4 |
24 |
151.4 |
37 |
241.8 |
| 12 |
100.0 |
25 |
156.7 |
38 |
250.3 |
DCS Code List
| N° |
DCS (Octal) |
N° |
DCS (Octal) |
N° |
DCS (Octal) |
N° |
DCS (Octal) |
| 1 |
23 |
27 |
152 |
53 |
311 |
79 |
466 |
| 2 |
25 |
28 |
155 |
54 |
315 |
80 |
503 |
| 3 |
26 |
29 |
156 |
55 |
325 |
81 |
506 |
| 4 |
31 |
30 |
162 |
56 |
331 |
82 |
516 |
| 5 |
32 |
31 |
165 |
57 |
332 |
83 |
523 |
| 6 |
36 |
32 |
172 |
58 |
343 |
84 |
526 |
| 7 |
43 |
33 |
174 |
59 |
346 |
85 |
532 |
| 8 |
47 |
34 |
205 |
60 |
351 |
86 |
546 |
| 9 |
51 |
35 |
212 |
61 |
356 |
87 |
565 |
| 10 |
53 |
36 |
223 |
62 |
364 |
88 |
606 |
| 11 |
54 |
37 |
225 |
63 |
365 |
89 |
612 |
| 12 |
65 |
38 |
226 |
64 |
371 |
90 |
624 |
| 13 |
71 |
39 |
243 |
65 |
411 |
91 |
627 |
| 14 |
72 |
40 |
244 |
66 |
412 |
92 |
631 |
| 15 |
73 |
41 |
245 |
67 |
413 |
93 |
632 |
| 16 |
74 |
42 |
246 |
68 |
423 |
94 |
654 |
| 17 |
114 |
43 |
251 |
69 |
431 |
95 |
662 |
| 18 |
115 |
44 |
252 |
70 |
432 |
96 |
664 |
| 19 |
116 |
45 |
255 |
71 |
445 |
97 |
703 |
| 20 |
122 |
46 |
261 |
72 |
446 |
98 |
712 |
| 21 |
125 |
47 |
263 |
73 |
452 |
99 |
723 |
| 22 |
131 |
48 |
265 |
74 |
454 |
100 |
731 |
| 23 |
132 |
49 |
266 |
75 |
455 |
101 |
732 |
| 24 |
134 |
50 |
271 |
76 |
462 |
102 |
734 |
| 25 |
143 |
51 |
274 |
77 |
464 |
103 |
743 |
| 26 |
145 |
52 |
306 |
78 |
465 |
104 |
754 |
|
