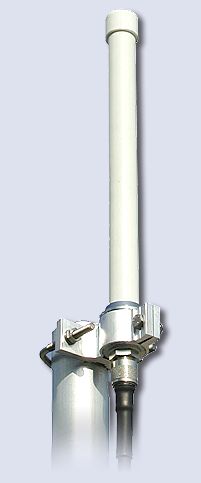

Electrical data |
• |
Type: 3x1/2λ colinear dipole array |
• |
Frequency range: 2300-2500 MHz for WLAN system |
• |
Impedance: 50Ω unbalanced |
• |
Radiation (H-plane): 360° omnidirectional |
• |

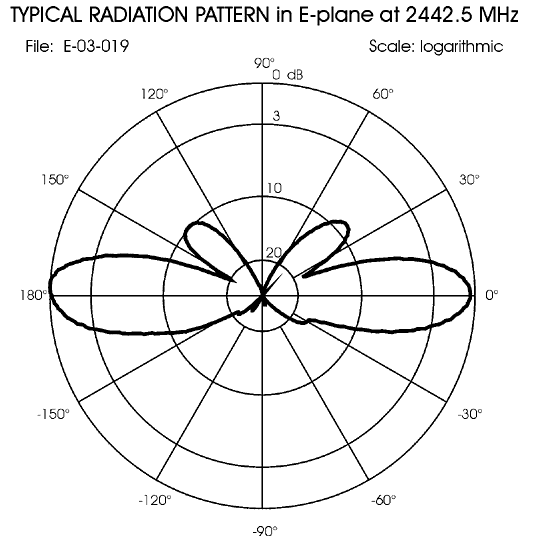

Radiation (E-plane): beamwidth at -3 dB = 22° |
• |
Radiation angle: 0° |
• |
Polarization: vertical |
• |
Gain: 3.9 dBd - 6 dBi |
• |
V.S.W.R. in bandwidth: ≤ 1.5:1 |
• |
Max. power: 20 Watts (CW) at 50° C |
• |
Feed system / position: direct DC-ground / base |
• |
Connection: N-female |
|
|
Mechanical data |
• |
Materials: Aluminium, Glass fibre, Brass, PCB |
• |
Wind load / resistance: 11 N at 150 Km/h / 200 Km/h |
• |
Wind surface: 0.01 m² |
• |
Height (approx.): 325 mm |
• |
Weight (approx.): 350 gr |
• |
Operating temperature: -40° C to +80° C |
• |
Mounting mast: Ø 35-54 mm |
