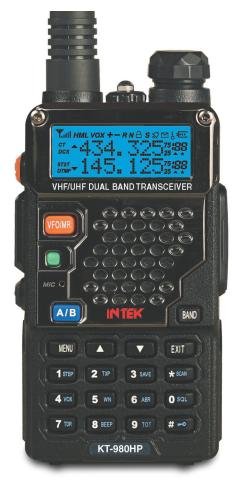

Ricetramettitore duo-banda VHF/UHF
Modello HIGH POWER !!! Firmware v3.01
MICROFONO/AURICOLARE INCLUSO
Distribuzione ufficiale della Intek SRL con relative certificazioni e garanzia Italiana
- Range frequenza 144-146 / 430-440 (136-174 / 400-480)** MHz
- Potenza di uscita massima : 8 Watt VHF e 7 Watt UHF
- Display con doppia frequenza contemporaneamente
- 128 Memorie
- 50 CTCSS and 104 CDCSS
- Funzione VOX
- Presa Mic a 2 spinotti tipo Kenwood
- Tono 1750 Hz
- FM Radio (65.0MHz-108.0MHz) con visualizzazione della frequenza
- LED ad altaluminosità per uso torcia.
- 2 livelli di potenza Alta /Bassa
- Funzione semiduplex
- 25KHz / 12.5KHz Wide/Narrow
- Step 5,00 - 6,25 - 10,00 - 12,5 - 20,0 - 25,00 Khz
- 40 comodi menu per il controllo totale della radio
- Antenna unica bibanda sia per la banda VHF e UHF
- Dimensioni 58 x 110 x 32 mm.
- Pacco batteria Li-Ion da 1800 mA estraibile a slitta
- Manuale cartaceo
**= Versione Export destinata a paesi extra CEE, non disponibile per il mercato italiano
Scarica il software di programmazione
Scarica drivers USB (XP, Seven, Vista, Win8, Win10)
Scarica Manuale PDF Italiano
Contenuto della confezione
1 Ricetrasmittente, Antenna, Caricatore da tavolo, Clip a cintura, laccio tracollo, Basetta desktop, Batteria litio, Auricolare/Microfono, Manuale
English:
Main Features
AMATEUR RADIO 144-430 MHz DUAL BAND VHF-UHF FM TRANSCEIVER
8W VHF / 7W UHF (*) - 3 POWER LEVELS (HIGH - MID - LOW)
PC PROGRAMMABLE / FREE SOFTWARE DOWNLOAD
REAL POCKET SIZE DUAL BAND VHF/UHF !
NEW HIGH POWER VERSION OF THE POPULAR KT-960 PLUS (UV-5R) !
Pocket size VHF-UHF FM Dual Band Amateur Radio transceiver, 128 channels, PC programmable (with optional PC cable), professional construction with diecast aluminum chassis. New aluminum front panel. Selectable RF power (Hi- Mid - Low). Adjustable Squelch level, VOX, Dual Watch, 50 CTCSS / 106 DCS, selectable Wide/Narrow mode, selectable frequency step (2.5/5/6.25/10/12.5/25 KHz), Offset, Shift Repeater, TOT, Multi Scan, Busy Channel Lockout, Battery Save. DTMF, Emergency Alarm and Roger Beep functions. FM Radio (88-108 MHz). Dial multi-function knob. Backlighted LCD with selectable color and digital S/RF meter. SMA antenna.

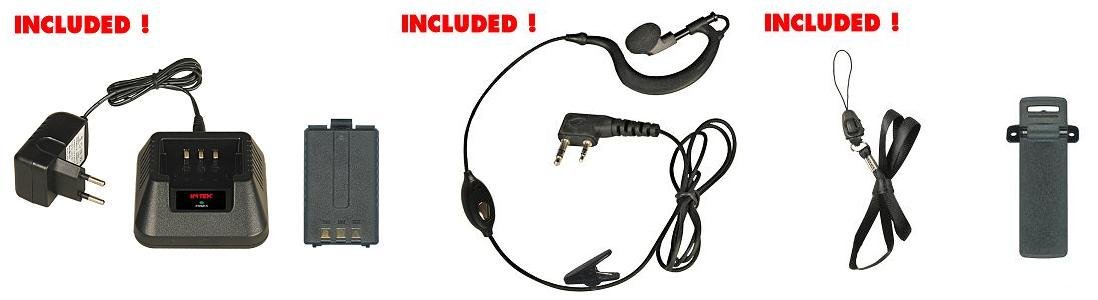

Full set includes :
1.8A Li-Ion Battery Pack (AT-960A), 220VAC Desk Charger, Earset-Microphone,
Belt Clip, Hand Strap, Dual Band SMA Antenna.
Download English PDF Manual
Specifications
> Frequency range 144-146 MHz (136-174 MHz) / 430-440 (400-470 MHz)

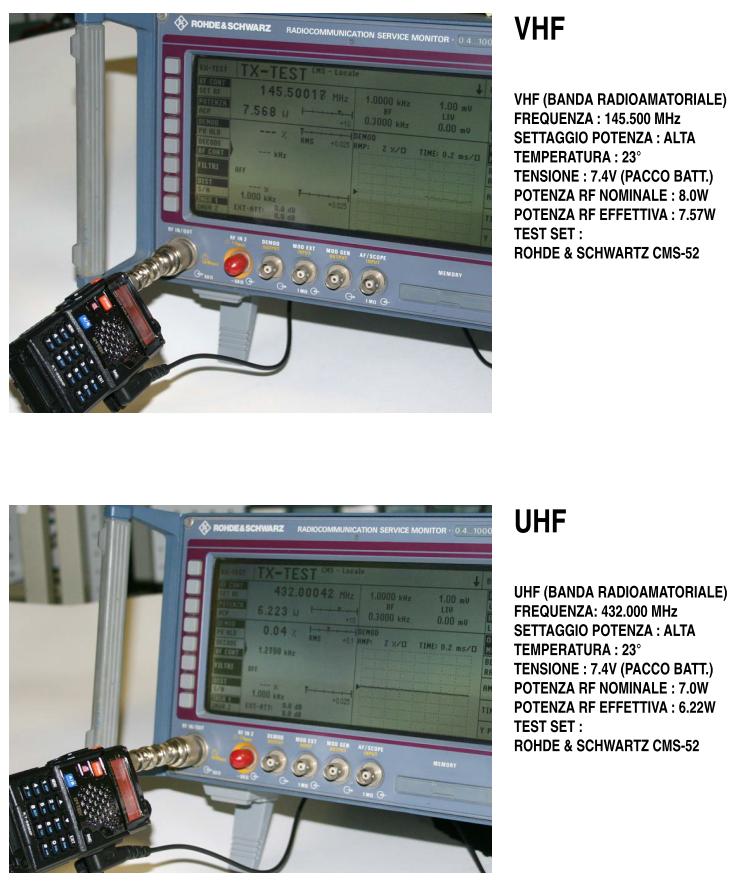

> TX Power (HIGH-MID-LOW): VHF (8W / 4W / 1W) / UHF (7W / 4W / 1W)
(*) Maximum transmitter output power in the Amateur Radio bands
> 128 Channels

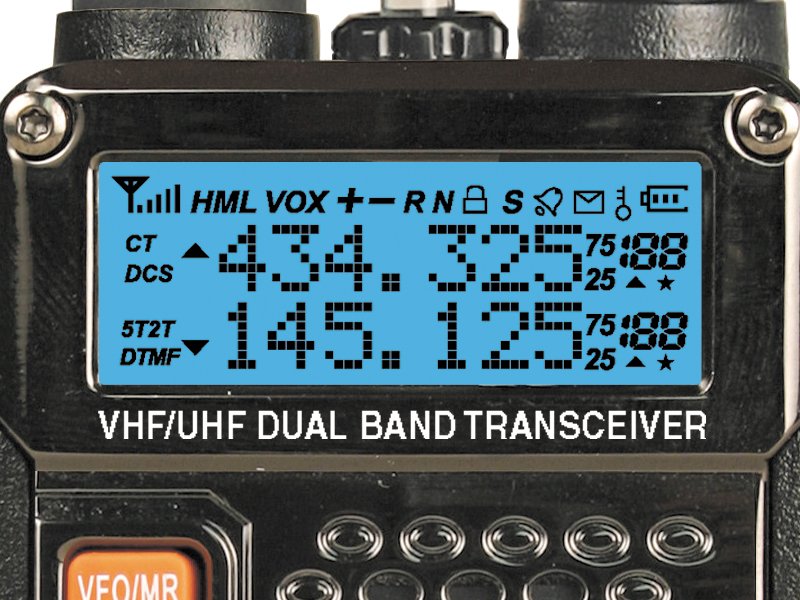

> Backlighted LCD Display with Digital S/RF and Battery meter
> Dual Band, Dual Frequency, Dual Display
> CALL / TOT (Time-Out-Timer) / LOCK / VOX / Dual Watch / Roger Beep
> SCAN and CTCSS/DCS SCAN
> 1750 Hz Repeater Tone / Shift Repeater / Repeater Sound Response
> DTMF Signaling / PTT ID
> Steps 2.5/5/6.25/10/12.5/25 KHz
> Adjustable Squelch Level / Selectable RF Power (Hi-Mid-Low)
> 50 CTCSS / 106 DCS tones
> Selectable Wide/Narrow mode
> Busy Channel Lockout / Offset / Emergency Alarm / FM Radio 88-108 MHz
> Battery Save / Tail Tone Elimination / Emergency Alarm / SOS
> PC programmable (with optional PC cable)
> Dimensions mm 58(L) x 110(H) x 32(D) / Weight 205 gr.
|
