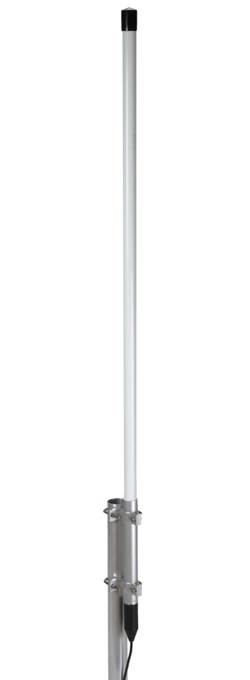

Antenna omnidirezionale VHF per uso professionale
larga banda 145-175 Mhz, 2.15dB, senza radiali
Caratteristiche:
| Base station antenna, Wide-band |
| Unity-gain, Omnidirectional |
| Suitable for land and marine service |
| Protection from static discharges DC-Ground |
| Perfect protection against the worst weather conditions |
| Designed to work without Ground Plane |
| Stainless steel hardwares |
| Type: dipole |
| Frequency range @ SWR ≤ 1.5: 145-175 MHz |
| Impedance: 50Ω |
| Radiation (H-plane): 360° omnidirectional |
| Radiation (E-plane): beamwidth @ -3 dB = 78° |
| Polarization: linear vertical |
| Gain: 0 dBd - 2.15 dBi |
| Max. Power (CW) @ 30°C: 100 Watts |
| Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short |
| Connector: N-female with rubber protection cap |
| Materials: White fiberglass radome Ø 28.6mm, anodized 6063-t5 aluminium, brass, stainless steel, copper, EPDM rubber |
| Wind load / resistance: 53 N @ 150 Km/h / 180 Km/h |
| Wind surface: 0.044 m² |
| Height (approx.): 1380 mm |
| Weight (approx.): 1315 gr |
| Operating temperature: -40°C to +80°C |
| Mounting mast: Ø 35-54 mm |
|
