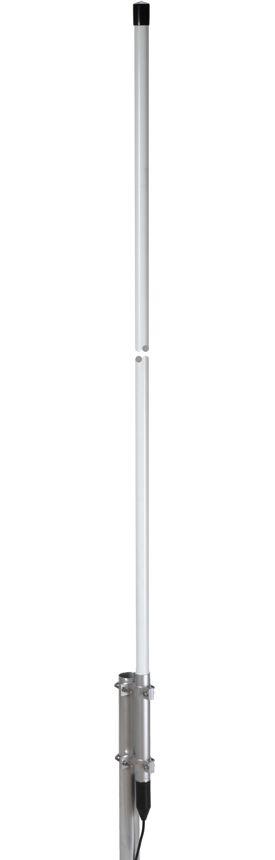

Antenna omnidirezionale VHF per uso professionale

larga banda, 5.15dB, senza radiali

Per la frequenza operativa scegliere la variante adatta


Caratteristiche:

•     Base station antenna, Wide-band
•     Medium-gain, Omnidirectional
•     Suitable for land and marine service
•     Protection from static discharges DC-Ground
•     Perfect protection against the worst weather conditions
•     Designed to work without Ground Plane
•     Stainless steel hardwares

Modelli Disponibili:

1. SPO-135-5   (135 - 147 Mhz)
2. SPO-145-5   (145 - 160 Mhz)
3. SPO-150-5   (150 - 165 Mhz)
4. SPO-158-5   (158 - 175 Mhz)

Dati Elettrici:

•     Type: Colinear

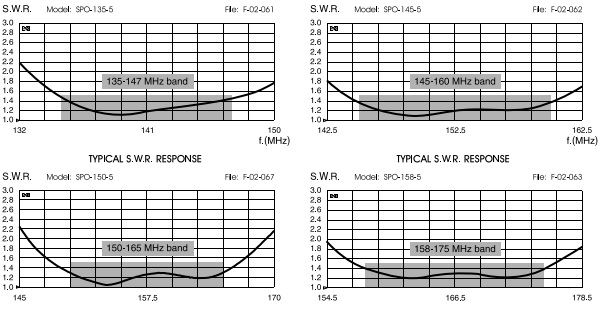

•     Frequency range @ SWR ≤ 1.5:
•     SPO-135-5: 135 -147 MHz
•     SPO-145-5: 145 -160 MHz
•     SPO-150-5: 150 -165 MHz
•     SPO-158-5: 158 -175 MHz
•     Impedance: 50Ω
•     Radiation (H-plane): 360° omnidirectional
•     Radiation (E-plane): beamwidth @ -3 dB = 40°
•     Radiation angle: 0°
•     Polarization: linear vertical
•     Gain: 3 dBd - 5.15 dBi
•     Max. Power (CW) @ 30°C: 100 Watts
•     Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
•     Connector: N-female with rubber protection cap

Materiali: Alluminio anodizzato, Ottone, Acciaio inox, Fibra di vetro, Gomma EPDM

• Altezza (approx):
  SPO-135-5: 2940 mm
  SPO-145-5: 2740 mm
  SPO-150-5: 2740 mm
  SPO-158-5: 2590 mm
• Peso (approx):
  SPO-135-5: 2160 gr
  SPO-145-5: 2045 gr
  SPO-150-5: 2000 gr
  SPO-158-5: 1950 gr

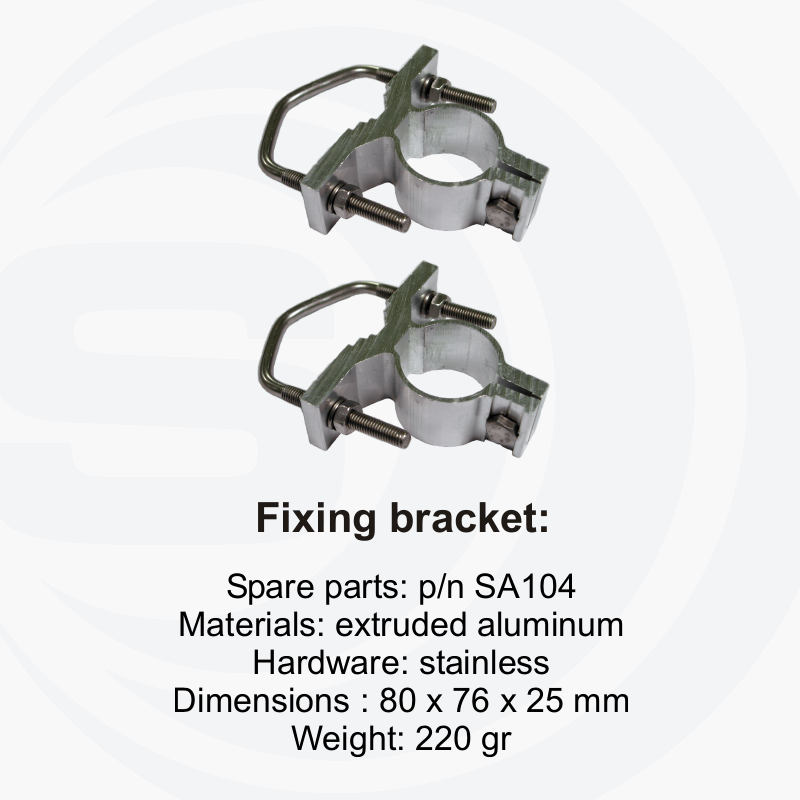

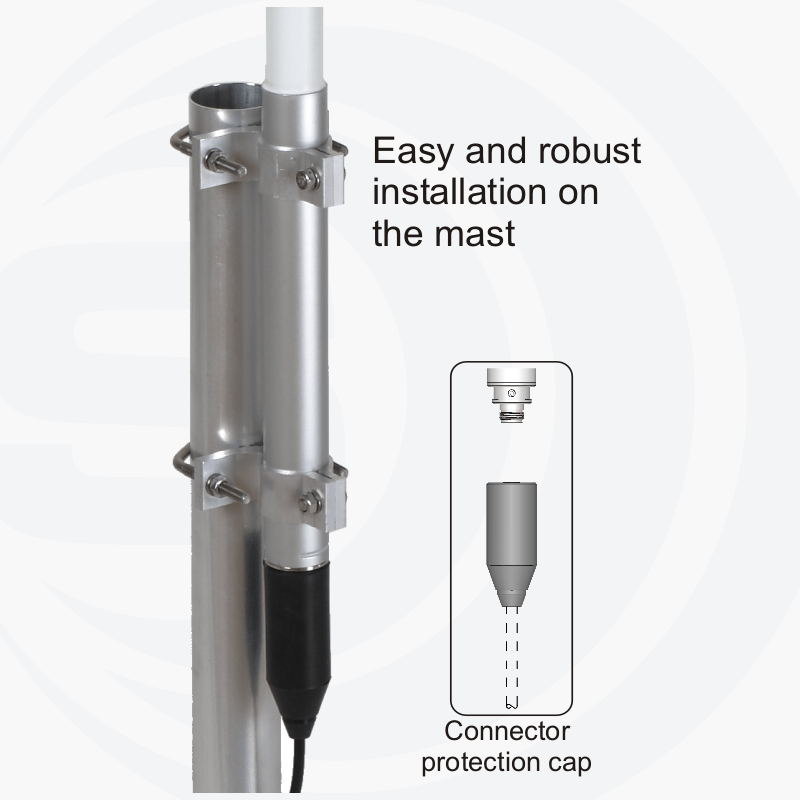

• Tipo di montaggio: Su palo
