Vedere HyperFlex 5 stesse dimensioni dell´H155 ma con attenuazioni migliori !

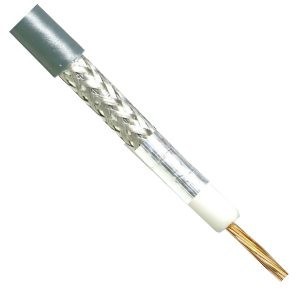

Cavo coassiale H155 originale Belden a bassa perdita con diametro molto contenuto, guaina PVC grigio

•  Flexible thin 50 Ohm coaxial cable for outdoor use
•  Designed according International Standard IEC 1196
•  Designed according the European Standard EN 50117 operating at frequencies between 5 MHz and 2150 MHz
•  Test methods in accordance with European standard  EN 50117-1

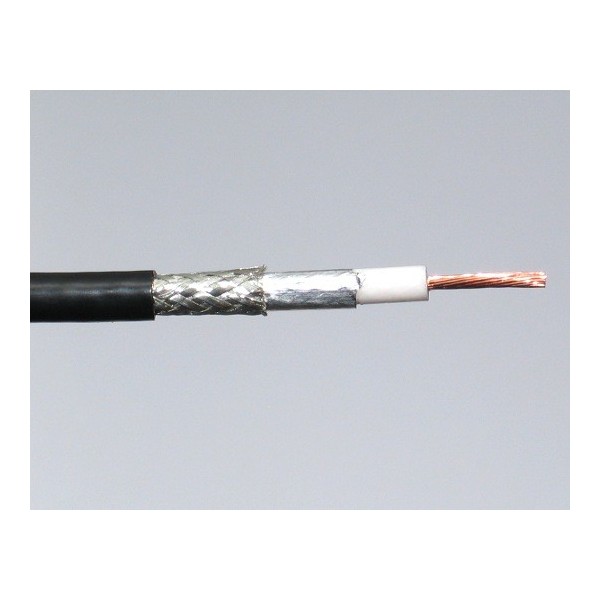

• 1 Inner conductor Soft annealed copper
• 2 Dielectric Gas injected PE
• 3.1 Foil AL-PET-AL
• 3.2 Braid Tinned copper
• 4 Sheath PVC gray
• 1. Inner conductor diameter: 19 x 0.28 mm
• 2. Dielectric diameter: 3.9 mm
• 3. Outer conductor diameter screen: 4.5 mm
• 4. Sheath diameter: 5.4 mm

• Storage temperature: -40°C to +80°C
• Operating temperature: -40°C to +80°C
• Minimum installation temperature: -5 °C
• Minimum static bend radius: 35 mm
• Total weight: 38 g/m

• Mean characteristic impedance: 50 Ω
• DC loop resistance: ≤ 32 Ω/km
• DC resistance inner conductor: ≤ 15 Ω/km
• DC resistance outer conductor: ≤ 17 Ω/km
• Capacitance: 82 pF/m
• Velocity ratio: 0.81

Attenuazione & Potenza alle varie frequenze:

Materiale & Dimensioni:
